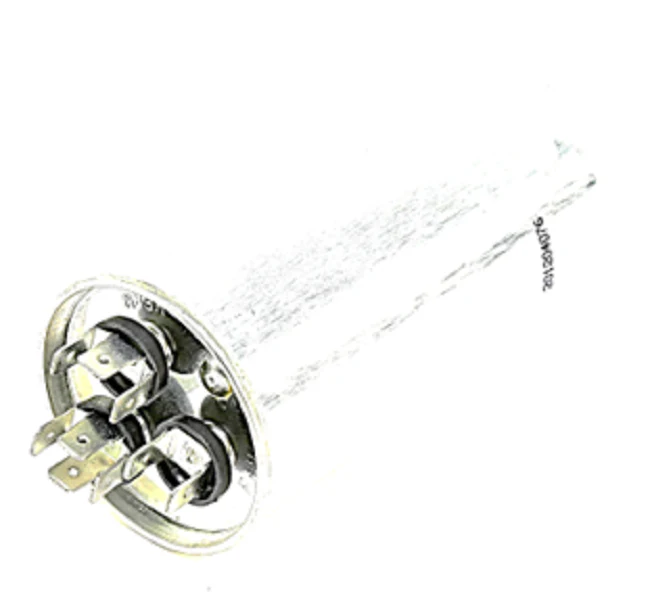

Hartland Controls CAP-25/10/440R Run Capacitor
The Hartland Controls CAP-25/10/440R is a high-performance round dual run capacitor engineered for demanding HVACR applications. For technicians servicing split systems, this 25/10 MFD capacitor provides the necessary phase shift to optimize compressor and fan motor torque and efficiency. Rated for 370/440VAC, this unit is a versatile "universal" replacement that allows contractors to reduce truck stock while ensuring a higher voltage safety margin during peak summer loads.
Constructed with a heavy-duty aluminum oil-filled case, the CAP-25/10/440R is built to withstand operating temperatures from -40°C to 70°C. It features standard 1/4" quick-connect terminals for rapid field installation and integrates a UL-recognized pressure-sensitive interrupter. This safety mechanism ensures the circuit is interrupted before case failure at the end of the component's life cycle. Designed in accordance with EIA-456 standards, this 25+10 microfarad component is the professional choice for maintaining the power factor of primary and secondary windings in residential and commercial condensing units.
Key Benefits:
- Dual Rated Application: Simultaneously supports the 25 MFD compressor side and 10 MFD fan side in a single 2-inch diameter footprint.
- Voltage Versatility: Fully compatible with systems requiring 370V or 440V, providing superior durability when replacing lower-voltage OEMs.
- Industrial-Grade Construction: Features non-PCB biodegradable oil and a rust-resistant aluminum housing for reliable heat dissipation.
- Internal Safety Protection: Equipped with an internal bridge designed to interrupt up to 10,000 amps of fault current.
- Precision Tolerance: Maintains a tight +/- 3% capacitance tolerance to ensure motors run within specified amperage and prevent winding overheating.
Common Questions:
- Can I use this to replace a 370V capacitor? Yes, a 440V rating is a "maximum" threshold. Using a 440VAC run capacitor in a 370V system provides an additional safety buffer and typically extends the component's operational life.
- What are the symptoms of a weak 25/10 capacitor? A failed HERM side usually prevents the compressor from starting (audible humming/thermal tripping), while a weak FAN side results in slow fan speeds or motor overheating.
- How do I identify the terminal connections? The terminals are marked "C" for Common, "HERM" for the compressor, and "FAN" for the condenser fan motor. Always discharge the capacitor before testing or handling.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
