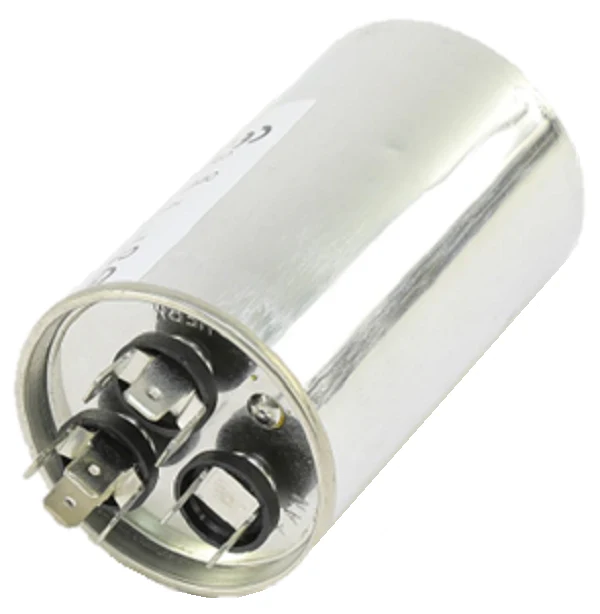

Hartland Controls CAP-20/10/440R Run Capacitor
The Hartland Controls CAP-20/10/440R Run Capacitor is a high-duty 20/10 MFD 440V dual run capacitor designed for continuous phase-angle correction in single-phase HVACR equipment. Engineered to EIA-456 standards, this round dual run capacitor effectively manages the electrical load for both compressor and fan motors within a single, condensed aluminum housing. It features a universal 370/440 VAC rating, allowing it to serve as a high-performance replacement for 370V units while providing superior tolerance against voltage spikes and thermal stress. The metallized polypropylene film dielectric ensures stable capacitance holding within a ?3% tolerance, optimizing motor torque and operational efficiency. Built with 0.250-inch quick-connect terminals, it allows for seamless integration into existing control circuits, making it a reliable choice for field technicians servicing residential and light commercial condensers or heat pumps.
Key Benefits- Dual-Motor Support: Consolidates capacitance for both the compressor (20 MFD) and fan (10 MFD) into one HVAC capacitor replacement.
- Broad Compatibility: Rated for both 370V and 440V applications, ensuring versatility across various AC capacitor service calls.
- Durable Construction: Features a round aluminum case that is vacuum-sealed to prevent oil leaks and protect against environmental contaminants.
- Safety-First Design: Includes an internal pressure-sensitive interrupter to disconnect the device safely in the event of an electrical overload.
Can I use a 440V capacitor to replace a 370V unit?
Yes. A 440V run capacitor can always replace a 370V unit with the same microfarad rating, as the voltage rating indicates the maximum electrical stress the component can handle.
What does the 20/10 MFD rating signify?
This is a dual-section capacitor. The 20 MFD side Typically supports the compressor circuit (Hermetic), while the 10 MFD side supports the fan motor.
How do I identify the terminals for installation?
The terminals are clearly marked: "C" for Common, "HERM" for the compressor, and "FAN" for the condenser fan motor. Ensure you use standard 1/4 inch female spade connectors for a secure fit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
