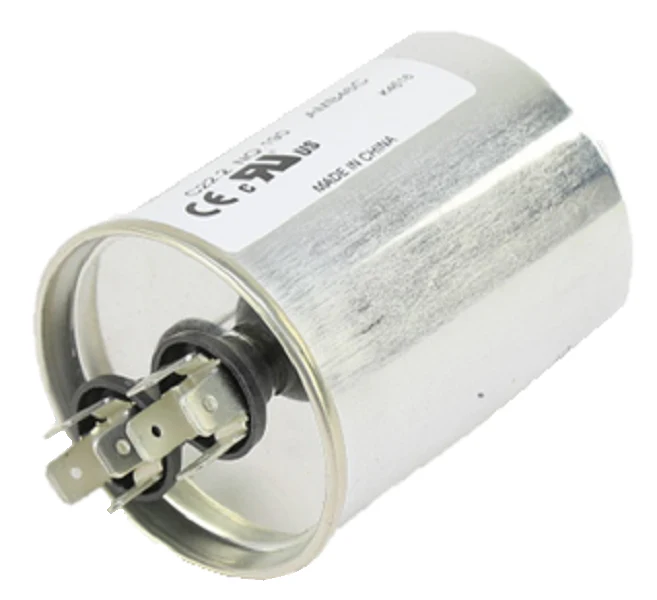

Hartland Controls CAP-15/440R Run Capacitor
The Hartland Controls CAP-15/440R Run Capacitor is a high-spec, continuous-duty component engineered for service technicians who prioritize long-term system stability. This 15 Microfarad 370/440VAC Round Capacitor is a direct replacement for 97F9445, providing exact-fit compatibility for a wide array of HVACR motors and compressors. Built to exceed EIA standard RS-456 requirements, it utilizes an oil-filled aluminum housing and a metalized polypropylene film dielectric to maintain tight ±3% tolerance under rigorous thermal stress. With a physical profile designed for standard strap mounting and 0.250" quick-connect terminals, this unit ensures efficient swaps in the field. Its dual-voltage rating allows for consolidation of truck stock, safely covering both 370V and 440V applications. This HVAC motor run capacitor is rated for a 22,000-hour operating life with a 94% survival rate, making it a reliable choice for preventing premature call-backs in demanding residential and commercial environments.
Key Benefits:- Dual Voltage Versatility: Fully rated for both 370V and 440V systems, simplifying inventory management.
- Industrial Durability: Aluminum oil-filled construction provides superior heat dissipation compared to dry-fill alternatives.
- High Precision: Maintains a tight ±3% capacitance tolerance to ensure optimal motor torque and energy efficiency.
- Standards Compliant: Manufactured to EIA-456 quality standards for uncompromised performance in continuous-duty cycles.
Can I use this capacitor to replace a 370V unit?
Yes. This 440V run capacitor is an appropriate upgrade for 370V applications, as the voltage rating indicates the maximum surge it can handle without dielectric breakdown.
Will this fit in my existing mounting bracket?
The CAP-15/440R features a standard round configuration compatible with most universal strap mounts. Always verify physical clearance if the original compartment is extremely tight.
Is this a multi-tap or single-run capacitor?
This is a single run capacitor designed specifically for a single motor or compressor lead. It is not a dual-run (three-terminal) capacitor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
