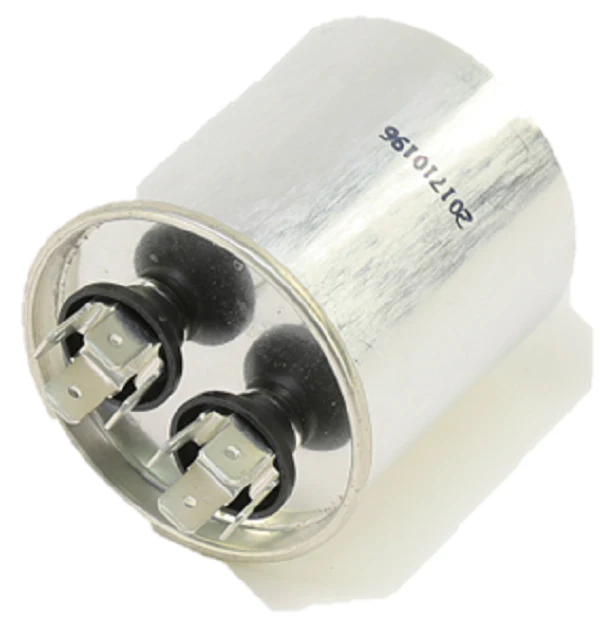

Hartland Controls CAP-10/440R Run Capacitor
The Hartland Controls CAP-10/440R is a heavy-duty 10 MFD 440V round run capacitor engineered for continuous-duty induction motor circuits in HVACR systems. As a professional-grade 10 microfarad 370/440Vac round run capacitor, this unit features a robust metallized polypropylene film dielectric housed in an unpainted aluminum casing. It is built to the EIA-456 standard, ensuring an operational life of up to 60,000 hours under optimal conditions. The 440VAC rating provides a necessary safety margin for 370V applications, allowing it to handle voltage fluctuations and high ambient temperatures ranging from -40°C to 70°C. This single run capacitor is equipped with standard 1/4-inch quick-connect terminals and an internal pressure interrupter for fault protection meeting UL 810 requirements. It is a reliable HVAC motor run capacitor replacement for condenser fan motors and blower assemblies, offering stable capacitance levels with a strict ±3% tolerance for precise electrical performance in the field.
Key Benefits:
- Dual Voltage Compatibility: Rated for both 370V and 440V configurations, simplifying truck stock for contractors.
- High Thermal Stability: Operates efficiently in extreme temperatures, a critical factor for condenser fan motor reliability.
- Safety Certified: Includes a built-in pressure-sensitive interrupter and is UL 810 recognized for circuit protection.
- Extended Service Life: Designed in accordance with EIA-456 standards for long-term field durability.
Common Questions:
- Can I use a 440V capacitor if the old one was 370V? Yes, you can always go up in voltage (440V replaces 370V), but you must never go down in voltage.
- How do I check the polarity on the CAP-10/440R? Run capacitors like this one are non-polarized; you can connect either lead to the terminals without risk of shorting.
- Is terminal configuration compatible with my current bracket? This is a standard 2-inch diameter round can, fitting most universal capacitor mounting brackets.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
