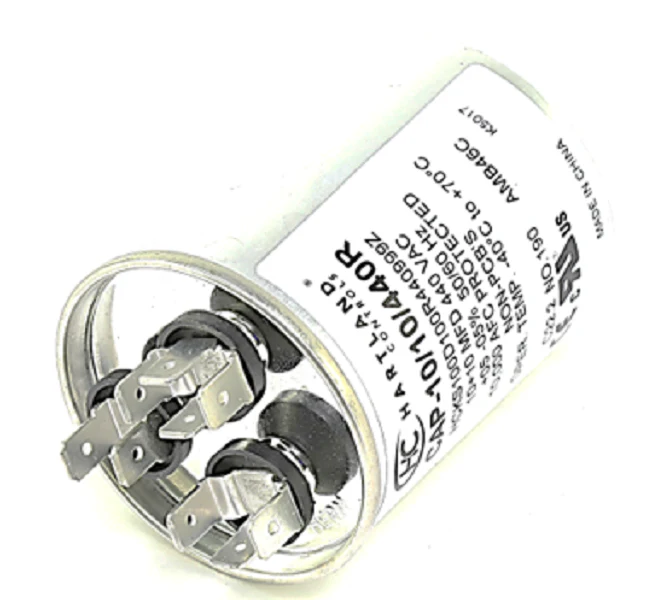

Hartland Controls CAP-10/10/440R Run Capacitor
The Hartland Controls CAP-10/10/440R is a high-duty 10/10 MFD dual run capacitor designed for continuous motor and compressor support in demanding HVACR applications. This round dual run capacitor features a versatile 370/440 VAC rating, allowing it to serve as a reliable replacement for both 370V and 440V units. Built with aluminum oil-filled construction and a polypropylene metallized film dielectric, it ensures low power loss and a 0.1% maximum dissipation factor. This unit is optimized for condenser fan motors and compressor startup, providing a precise ±3% capacitance tolerance (or standard +/- 5% depending on specific batch testing) to maintain peak efficiency. Rated for 60,000 hours of operational life, it includes UL 810 recognized internal protection to safely interrupt currents up to 10k AFC. The 1/4 inch quadruple quick-connect terminals are clearly labeled for easy integration into existing wiring harnesses.
Key Benefits:
- Universal Voltage Compatibility: The 370/440Vac rating reduces inventory needs by replacing lower voltage 370V capacitors.
- Robust Environmental Tolerance: Engineered to operate in temperatures ranging from -40°C to +70°C for consistent performance in outdoor enclosures.
- Precision Engineering: Meets EIA-456 standards, ensuring stable microfarad output and reducing heat buildup during heavy-duty cycles.
- Safety First: Features a non-PCB oil-filled design with a pressure-sensitive interrupter for fail-safe operation.
Common Questions:
Can I use a 440V capacitor if my original was 370V?
Yes, using a 440 VAC capacitor in place of a 370 VAC unit is a standard trade practice that provides a higher breakdown voltage and improved durability without changing motor performance.
How do I identify the terminal connections?
The CAP-10/10/440R uses standard labeling: "C" for common, "HERM" for the compressor, and "FAN" for the condenser fan motor, compatible with standard HVAC dual motor run configurations.
What does the "R" signify in the part number?
The "R" indicates a round case design, which is essential for proper fitment in mounting brackets specifically sized for cylindrical capacitors rather than oval ones.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
