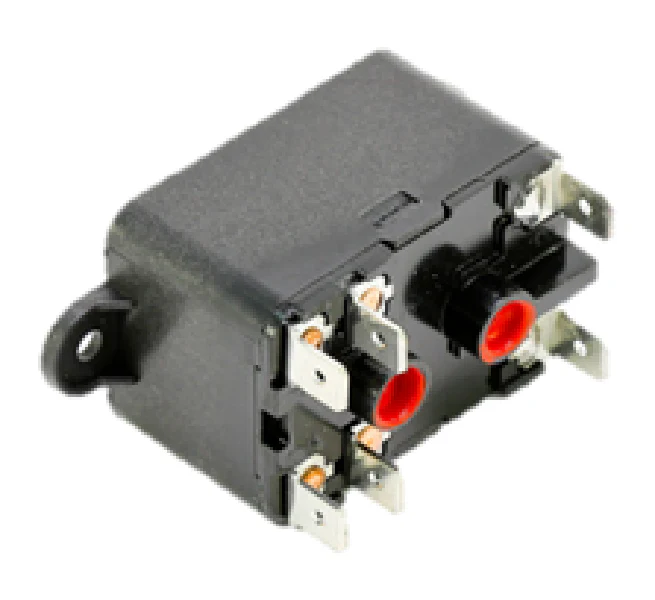

Hartland Controls 90380 Relay
The Hartland Controls 90380 Relay is a heavy-duty, general-purpose 24V fan relay engineered for versatile switching in commercial and residential HVACR systems. As a direct replacement for P283-0380 and White-Rodgers Type 184 models, this SPDT (1NO/1NC) relay provides a reliable solution for fan control, automation circuits, and safety interlocks. The electromechanical design features 1/4 inch quick-connect terminals for efficient field wiring and a multi-positional mounting bracket that adapts to various chassis configurations. With a Class B insulation system and UL 508 certification, it is rated for continuous duty in demanding environments ranging from -40?F to 150?F. This 24V HVAC relay is capable of handling inductive loads up to 12 FLA at 120VAC, making it a rugged alternative for technicians looking to restore factory-spec performance to furnace blowers and condenser fan motors.
- Field-Proven Compatibility: Functions as the primary 90-380 replacement relay for Totaline, Supco, and Mars-branded components.
- Dual-Circuit Flexibility: The 1NO/1NC contact configuration allows for simultaneous switching of independent circuits, essential for complex fan sequencing.
- High Load Rating: Engineered for 25A resistive loads and high-inrush start cycles common in refrigeration compressors and HVAC blower motors.
- A2L Compliant: Suitable for use in modern systems utilizing mildly flammable refrigerants.
Common Questions
Is the 90380 relay compatible with 24VAC control circuits?
Yes, this 24V coil relay is specifically designed for 24VAC 50/60Hz control signals commonly found in thermostat and transformer-driven HVAC systems.
Can this replace a single pole single throw (SPST) relay?
Yes, because it features both normally open and normally closed contacts, it can replace an SPNO or SPNC relay by utilizing only the required set of terminals.
What are the physical dimensions for mounting?
The compact footprint measures approximately 2.38 in. x 1.63 in. x 1.50 in., allowing it to fit into most standard electrical control boxes and furnace panels.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
