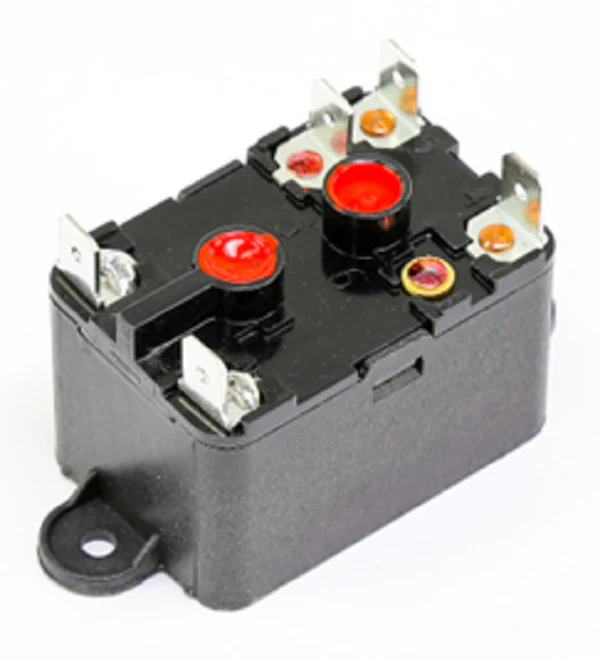

Hartland Controls 90370 Relay
The Hartland Controls 90370 Relay is a heavy-duty SPDT 24V relay engineered for reliable switching in demanding HVAC and industrial control circuits. As a direct 90370 is identical to S8201-009 cross-reference, this HCR-5 Series component ensures seamless integration into existing chassis mount relay configurations without requiring field modifications. The 18A contact rating and 24VAC coil drive optimized performance for motor starting, fan sequencing, and pump control. Built by Hartland Controls (a Littelfuse company), this general purpose relay features standard 0.250-inch quick-connect terminals to reduce installation time for technicians. With an operational range of -40?C to 65?C, the 90-370 maintains tight tolerances in high-ambient mechanical rooms. This non-latching, 1 Form C configuration provides the durability required for repetitive cycling in commercial appliances and lighting control systems. Whether sourcing for OEM production or field replacement, the 90370 delivers industrial-grade switching reliability.
Key Benefits for Contractors
- Direct Cross-Reference: Confirmed identical to S8201-009 for simplified part consolidation.
- High Current Capacity: Rated for 18A to handle inductive loads in HVAC and automation systems.
- Quick Installation: Features 0.250" (6.3mm) male tabs for rapid wire termination.
- Rugged Temperature Rating: Stable operation from -40?C to 65?C for extreme environments.
- Compact Chassis Mount: Low-profile design facilitates high-density mounting in control cabinets.
Common Questions
Is the Hartland Controls 90370 a suitable replacement for the S8201-009?
Yes, the 90370 is technically identical to the S8201-009 and can be used as a drop-in replacement in all 24V SPDT applications.
What are the pull-in and drop-out voltage specifications?
The relay features a "Must Operate" voltage of 20.4 VAC and a "Must Release" voltage of 4.8 VAC, ensuring precise switching and preventing accidental chatter in fluctuating control circuits.
Can this relay handle direct motor loads?
With an 18A contact current rating, the 90370 is frequently used for switching small motors and blowers within its specified amperage and voltage limits.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
