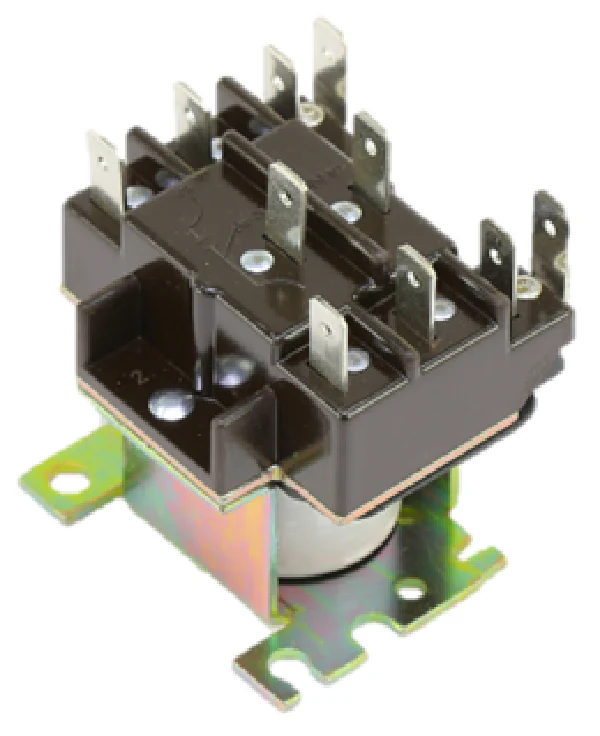

Hartland Controls 90341 Relay
The Hartland Controls 90341 Relay is a heavy-duty, general-purpose DPDT 120V relay engineered for reliable switching in demanding HVACR environments. Designed as a universal 91-series power relay, this component features a 120VAC coil and is a common replacement for 110-120V residential and commercial applications. The double pole double throw configuration provides versatile circuit control, making it ideal for fan switching, standby power, and auxiliary heat sequencing. With its 15A contact rating and Class B insulation system, the 90341 ensures thermal stability under high-load cycles. The unit is equipped with industry-standard .250" quick-connect terminals and a multi-positional mounting bracket, allowing for seamless field installation. Whether you are performing a Honeywell R4222D1013 cross reference or a standard furnace relay replacement, this semi-enclosed relay delivers the mechanical durability required to prevent contact chatter and ensure smooth inductive load management for compressors and blower motors.
Key Benefits for Contractors- Universal Compatibility: Serves as a direct replacement for Type 91 and RBM-style relays, reducing the need to carry multiple SKUs on the truck.
- Rugged Electrical Specs: Rated for up to 15 Amps at 277VAC, capable of handling inductive loads such as 3/4 HP motors at 120V.
- Flexible Mounting: The universal bracket design and dual .250" QC terminals streamline upgrades in tight control cabinets.
- Enhanced Reliability: Class B insulation protects the coil from premature failure in high-temperature ambient conditions.
- Can this relay replace a single-pole unit? Yes, the DPDT configuration can function as a SPDT or SPNO relay by utilizing only the necessary terminals (1-2-3 or 4-5-6), provided the coil voltage matches.
- What are the terminal assignments? Standard wiring typically uses terminals 1 and 3 for the 120V coil, with the remaining terminals serving the isolated double pole switching circuits.
- Is this suitable for 24V control circuits? No, the 90341 requires a 120VAC pilot signal; for 24V thermostat-controlled circuits, use the 90340 model.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
