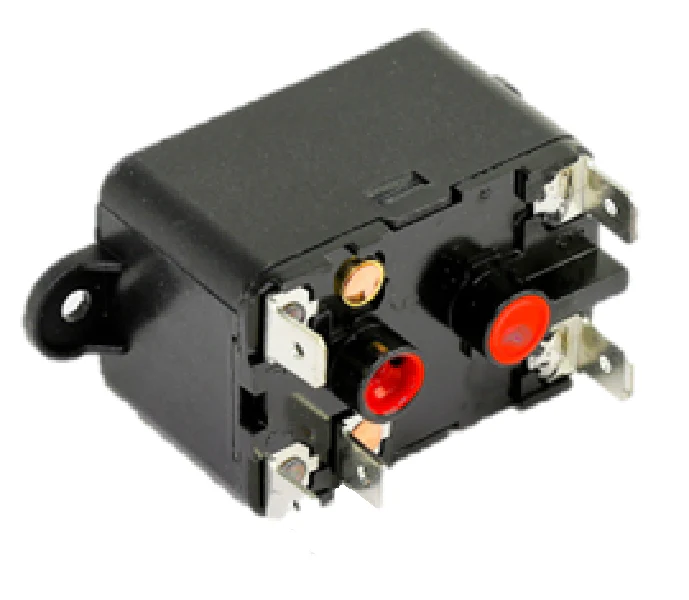

Hartland Controls 90295 Relay
The Hartland Controls 90295 Relay is a heavy-duty SPDT 240V Relay engineered for precision switching in demanding HVACR and industrial automation environments. This general purpose relay features a Single Pole Double Throw configuration, allowing for seamless transition between two separate circuits. Built with a Class B insulation system, it is rated for high-thermal performance and long-term reliability in control circuits, standby power supplies, and fan motor switching. The unit is equipped with 0.250 inch QC terminals (quick-connect) to ensure secure electrical contact and a streamlined installation process for field technicians. Its multi-positional mounting capability provides the flexibility required for tight control panels or retrofitting existing systems. With a 18A inductive rating and UL 508 certification (File No. E227250), this 240V AC coil relay is a standard-issue component for professionals maintaining commercial refrigeration and air conditioning hardware.
Key Benefits- High Switching Capacity: Capable of handling up to 18A, making it ideal for HVAC fan relays and small motor loads.
- Universal Mounting: The multi-positional bracket design allows for installation in various orientations without compromising mechanical operation.
- Standardized Connectivity: Standard 1/4" (0.250") quick-connect terminals reduce wiring time and ensure compatibility with existing harnesses.
- Industrial Durability: Rugged construction and UL approval ensure stable performance in high-duty cycle applications.
Is the 90295 relay compatible with 208V systems?
Yes, while optimized for 240V AC, this relay is commonly used in 208/240V single-phase applications typical of commercial HVAC equipment.
What is the difference between SPDT and SPNO relays?
The SPDT (Single Pole Double Throw) configuration of the 90295 allows for both normally open (NO) and normally closed (NC) operations, whereas an SPNO relay only provides a normally open path. This makes the 90295 more versatile for complex switching logic.
Can this relay replace a White-Rodgers or Packard equivalent?
The Hartland Controls 90295 is an industry-standard footprint. It can often replace equivalents like the White-Rodgers 90-374 or Packard PR295Q, provided the coil voltage and contact ratings match your specific system requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $18.53
-65%$18.53
$6.49Hartland Controls 90295 Relay
The Hartland Controls 90295 Relay is a heavy-duty SPDT 240V Relay engineered for precision switching in demanding HVACR and industrial automation environments. This general purpose relay features a Single Pole Double Throw configuration, allowing for seamless transition between two separate circuits. Built with a Class B insulation system, it is rated for high-thermal performance and long-term reliability in control circuits, standby power supplies, and fan motor switching. The unit is equipped with 0.250 inch QC terminals (quick-connect) to ensure secure electrical contact and a streamlined installation process for field technicians. Its multi-positional mounting capability provides the flexibility required for tight control panels or retrofitting existing systems. With a 18A inductive rating and UL 508 certification (File No. E227250), this 240V AC coil relay is a standard-issue component for professionals maintaining commercial refrigeration and air conditioning hardware.
Key Benefits- High Switching Capacity: Capable of handling up to 18A, making it ideal for HVAC fan relays and small motor loads.
- Universal Mounting: The multi-positional bracket design allows for installation in various orientations without compromising mechanical operation.
- Standardized Connectivity: Standard 1/4" (0.250") quick-connect terminals reduce wiring time and ensure compatibility with existing harnesses.
- Industrial Durability: Rugged construction and UL approval ensure stable performance in high-duty cycle applications.
Is the 90295 relay compatible with 208V systems?
Yes, while optimized for 240V AC, this relay is commonly used in 208/240V single-phase applications typical of commercial HVAC equipment.
What is the difference between SPDT and SPNO relays?
The SPDT (Single Pole Double Throw) configuration of the 90295 allows for both normally open (NO) and normally closed (NC) operations, whereas an SPNO relay only provides a normally open path. This makes the 90295 more versatile for complex switching logic.
Can this relay replace a White-Rodgers or Packard equivalent?
The Hartland Controls 90295 is an industry-standard footprint. It can often replace equivalents like the White-Rodgers 90-374 or Packard PR295Q, provided the coil voltage and contact ratings match your specific system requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
