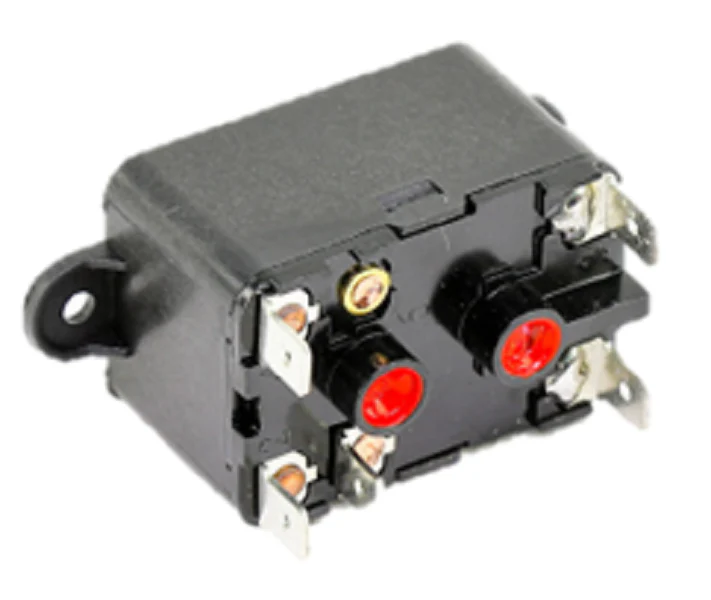

Hartland Controls 90294 Relay
The Hartland Controls 90294 Relay is a heavy-duty general purpose switching relay engineered for demanding HVAC and refrigeration applications. Featuring a 120V coil and a single pole double throw (SPDT) configuration, this component is a direct field replacement for the industry-standard Type 84 (90-290 through 90-295) series. Built with a Class B insulation system and silver cadmium oxide contacts, it is designed to manage single or two-speed fan motors, solenoids, and resistive loads with high reliability. The unit includes standard 1/4-inch quick-connect terminals and a multi-positional tab bracket to ensure a seamless fit in tight control panels. Rated for 12 FLA at 125 VAC and up to 18A resistive, this 120VAC fan relay provides the robust switching performance required for furnace blowers and air conditioning systems. The 90294 relay is UL 508 recognized and CSA listed, making it a staple for contractors maintaining mission-critical electrical controls in residential and light commercial equipment.
Key Benefits- Universal Compatibility: Serves as a reliable cross-reference for Mars 90294 and White-Rodgers 90-294 equivalents.
- Enhanced Durability: Equipped with silver cadmium oxide alloy contacts to prevent pitting and extend electrical life expectancy under inductive loads.
- Flexible Installation: The non-positional mounting bracket and 0.25-inch QC terminals simplify wiring in various orientations.
- High Thermal Rating: Features a Class B insulation system capable of operating in ambient temperatures from -40°C to +65°C.
- Multi-Purpose Utility: Ideal for switching fan motors, power supplies, and telecommunications exchanges.
What are the contact ratings for the 90294 relay?
This SPDT relay is rated for 12 Full Load Amps (FLA) and 60 Locked Rotor Amps (LRA) at 125 VAC, or 8 FLA and 48 LRA at 240/277 VAC. It handles up to 18 Amps resistive at 125 VAC.
Can this relay be used in A2L refrigerant systems?
Yes, modern iterations of the 90294 design are often rated as A2L compliant for use in newer HVAC equipment utilizing mildly flammable refrigerants.
Is the coil voltage strictly 120V?
The inductive coil is designed for 110/120V 50/60Hz AC signals. Attempting to trigger the relay with 24V or 240V control circuits will result in failure or coil burnout.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
