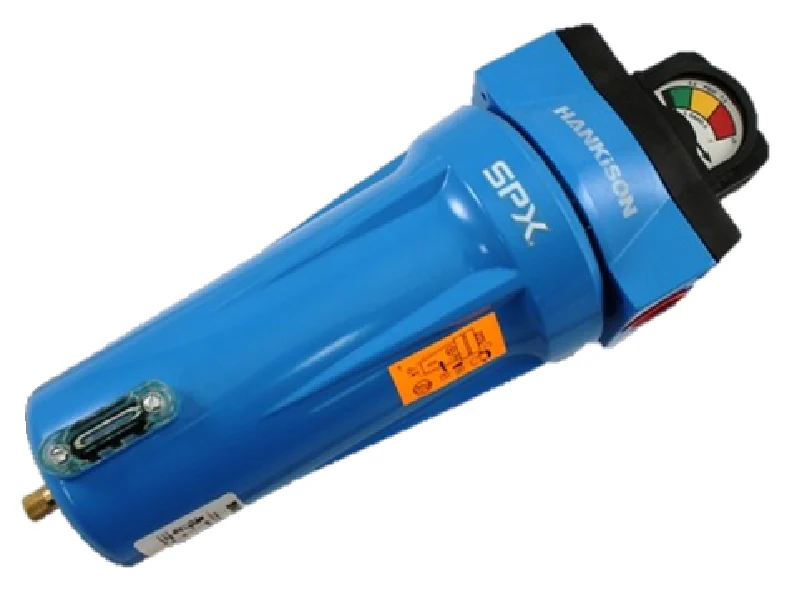

Hankison HF9-24-8-DGL Air Filter Unit
The Hankison HF9-24-8-DGL is an industrial-grade 1" NPT compressed air filter designed for high-capacity bulk liquid removal and solid particle filtration. As a Grade 9 separator/filter, this unit uses two-stage mechanical and coalescing filtration to eliminate liquid water and oil sets, protecting downstream pneumatic equipment from contamination. Rated for a capacity of 100 SCFM at 100 PSIG, it features a rugged housing capable of withstanding a maximum pressure of 250 PSIG and operating temperatures up to 150°F. This model is equipped with a differential pressure gauge for real-time monitoring of element life, an internal automatic drain for maintenance-free condensate removal, and a liquid level indicator. The push-on element design ensures rapid servicing, while the piston-type seal prevents unfiltered air bypass, maintaining system integrity in demanding plant or process air applications.
Key Benefits
- High-Efficiency Separation: Grade 9 filtration achieves bulk liquid removal and filters solid particles down to 3 microns.
- Integrated Monitoring: Standard differential pressure gauge and liquid level indicator allow for proactive maintenance and reduced downtime.
- Automatic Condensate Management: The internal automatic drain reliably expels liquids without manual intervention or air loss.
- Durable Construction: Heavy-duty housing with a 1" NPT connection supports high flow rates up to 100 SCFM for industrial scales.
- Low Pressure Drop: Engineered flow paths minimize energy loss, helping to maintain system efficiency and lower operating costs.
Common Questions
What is the primary function of a Grade 9 filter?
A Grade 9 filter acts as a mechanical separator and filter, primarily used for bulk liquid removal and capturing large solid particles. It is typically installed as a pre-filter to protect high-efficiency coalescing filters or refrigerated air dryers from heavy liquid loading.
When should the filter element be replaced?
For optimal performance, the element should be changed when the differential pressure gauge indicates a drop of 10 PSI or at least once per year. Operating significantly above this pressure drop increases energy costs and risks contaminant carryover.
Can this unit handle synthetic compressor lubricants?
Yes, the HF series is designed with materials compatible with standard mineral and synthetic lubricants, as well as acidic condensates found in compressed air systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $838.88
-65%$838.88
$293.61Hankison HF9-24-8-DGL Air Filter Unit
The Hankison HF9-24-8-DGL is an industrial-grade 1" NPT compressed air filter designed for high-capacity bulk liquid removal and solid particle filtration. As a Grade 9 separator/filter, this unit uses two-stage mechanical and coalescing filtration to eliminate liquid water and oil sets, protecting downstream pneumatic equipment from contamination. Rated for a capacity of 100 SCFM at 100 PSIG, it features a rugged housing capable of withstanding a maximum pressure of 250 PSIG and operating temperatures up to 150°F. This model is equipped with a differential pressure gauge for real-time monitoring of element life, an internal automatic drain for maintenance-free condensate removal, and a liquid level indicator. The push-on element design ensures rapid servicing, while the piston-type seal prevents unfiltered air bypass, maintaining system integrity in demanding plant or process air applications.
Key Benefits
- High-Efficiency Separation: Grade 9 filtration achieves bulk liquid removal and filters solid particles down to 3 microns.
- Integrated Monitoring: Standard differential pressure gauge and liquid level indicator allow for proactive maintenance and reduced downtime.
- Automatic Condensate Management: The internal automatic drain reliably expels liquids without manual intervention or air loss.
- Durable Construction: Heavy-duty housing with a 1" NPT connection supports high flow rates up to 100 SCFM for industrial scales.
- Low Pressure Drop: Engineered flow paths minimize energy loss, helping to maintain system efficiency and lower operating costs.
Common Questions
What is the primary function of a Grade 9 filter?
A Grade 9 filter acts as a mechanical separator and filter, primarily used for bulk liquid removal and capturing large solid particles. It is typically installed as a pre-filter to protect high-efficiency coalescing filters or refrigerated air dryers from heavy liquid loading.
When should the filter element be replaced?
For optimal performance, the element should be changed when the differential pressure gauge indicates a drop of 10 PSI or at least once per year. Operating significantly above this pressure drop increases energy costs and risks contaminant carryover.
Can this unit handle synthetic compressor lubricants?
Yes, the HF series is designed with materials compatible with standard mineral and synthetic lubricants, as well as acidic condensates found in compressed air systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
