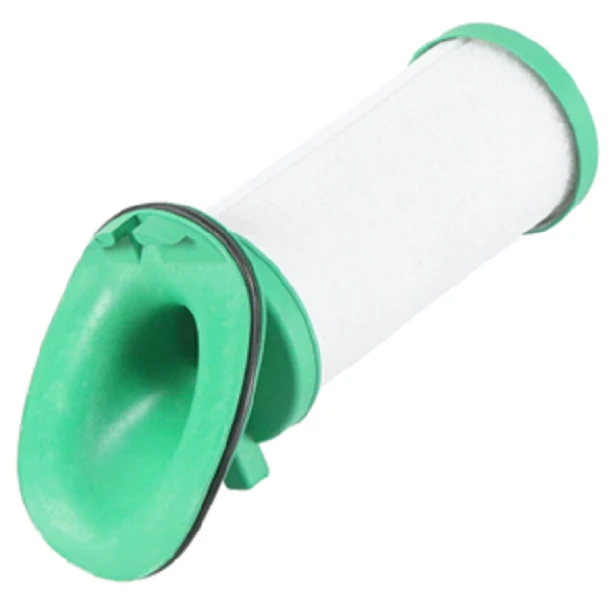

Hankison HF-04 Filter Element
The Hankison HF-04 Filter Element is a high-efficiency coalescing filter designed to maintain critical compressed air purity in industrial environments. Engineered as a Grade 5 replacement filter element, it excels at removing 99.999% of oil aerosols and solid particulates down to 0.01 micron. This element is vital for protecting downstream equipment from moisture and lubricant carryover, ensuring a remaining oil content of less than 0.008 ppm w/w. Built with a matrix-blended fiber media and corrosion-resistant stainless steel cores, the HF-04 provides structural integrity under high-pressure differentials. Its push-on element design featuring a piston-type seal prevents air by-pass, while the coated closed-cell foam sleeve resists chemical breakdown. For contractors managing Hankison HF Series housings, this element is the standard for spray painting, instrumentation, and control valve applications where oil-free air is a technical requirement. Integrating this Hankison replacement filter restores system efficiency and stabilizes pressure drop performance.
Key Benefits- Sub-micron Filtration: Captures 99.999% of contaminants as small as 0.01 micron to prevent pneumatic tool failure.
- Advanced Media Design: Matrix-blended fiber provides a large surface area for high dirt-holding capacity and low initial pressure drop.
- Rugged Construction: Stainless steel inner and outer cores ensure the element maintains shape and prevents collapsing during pressure surges.
- Oil Aerosol Removal: Reduces oil carryover to 0.008 ppm w/w, exceeding ISO 8573.1 Class 1 air quality standards.
- Seamless Compatibility: Specifically engineered for Hankison F04 Series filter housings with a 50 SCFM flow rating.
What is the micron rating for the Hankison HF-04?
The HF-04 is a Grade 5 high-efficiency element rated for 0.01 micron filtration, effectively removing fine water and oil aerosols from the air stream.
When should this filter element be replaced?
Technicians should replace the element when the differential pressure indicator signals a drop or at least once per year to maintain energy efficiency and prevent contamination bypass.
Is the HF-04 compatible with synthetic compressor lubricants?
Yes, the closed-cell foam sleeve and specialized adhesives are chemically resistant to both mineral and synthetic lubricants typically found in heavy-duty compressor systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
