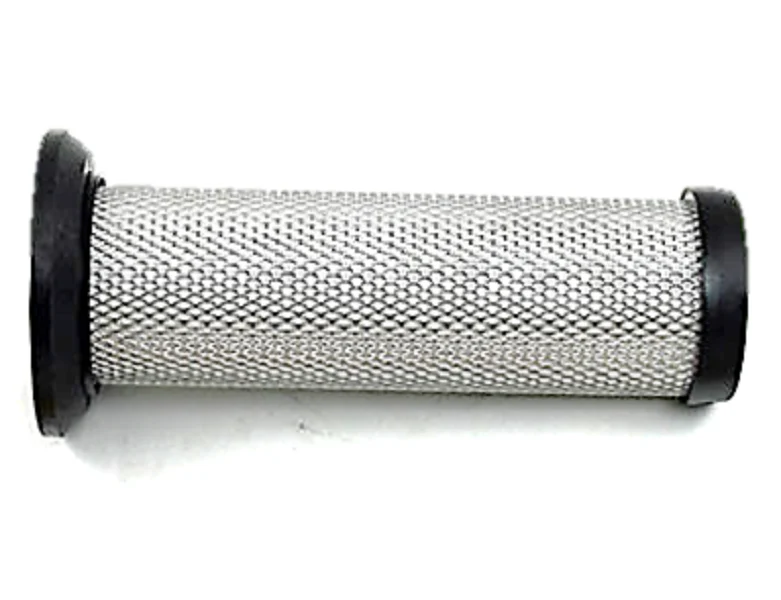

Hankison E7-20 Filter Element
The Hankison E7-20 Filter Element is a high-performance Grade 7 air line filter designed for industrial compressed air systems requiring rigorous liquid and particulate removal. Engineered as a coalescing filter element, the E7-20 utilizes a specialized two-stage filtration process. The first stage employs alternating layers of fiber media and high-strength screens to capture bulk liquid water and solid particles. The second stage features multiple layers of epoxy-bonded, blended fiber media that successfully coalesce oil aerosols and trap remaining solid contaminants. This 1 micron compressed air filter ensures a maximum remaining oil content of 1.0 ppm w/w at standard 100°F inlet temperatures, adhering to CAGI ADF400 standards. With a flow rating of 60 SCFM and a maximum temperature threshold of 150°F, this replacement filter element effectively prevents downstream contamination in pneumatic tools and instrumentation. Its matrix-blended fiber media provides a large surface area for high efficiency filtration while maintaining a low pressure drop. The silicone-free construction and chemically resistant end caps ensure long-term durability in demanding HVACR and industrial environments.
Key Benefits:
- Dual-Stage Coalescing: Effectively removes liquid water, oil aerosols, and solid particulate down to 1.0 micron.
- Enhanced Durability: Features a corrosion-resistant inner and outer stainless steel core for structural integrity under pressure.
- System Protection: Acts as a critical pre-filter for high-efficiency oil removal stages or an after-filter for refrigerated and desiccant dryers.
- Low Pressure Drop: Optimized fiber density ensures high flow rates of 60 SCFM without significant energy loss.
- Easy Installation: Push-on design with piston-type seals prevents air bypass and simplifies field replacement.
Common Questions:
What is the micron rating for the Hankison Grade 7 element?
The Hankison E7-20 is rated for 1.0 micron particulate removal, making it a general-purpose air line filter suitable for liquid water and oil removal.
How often should I replace the E7-20 filter element?
While service life depends on air quality, technicians typically replace these elements every 6,000 to 8,000 hours of operation or when the pressure differential indicates the media is saturated.
Is this element compatible with HF7-20 series housings?
Yes, the E7-20 is specifically designed for use in Hankison HF7-20-3 and HF7-20-4 series filter housings, ensuring a precise fit and seal.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $146.56
-65%$146.56
$51.30Hankison E7-20 Filter Element
The Hankison E7-20 Filter Element is a high-performance Grade 7 air line filter designed for industrial compressed air systems requiring rigorous liquid and particulate removal. Engineered as a coalescing filter element, the E7-20 utilizes a specialized two-stage filtration process. The first stage employs alternating layers of fiber media and high-strength screens to capture bulk liquid water and solid particles. The second stage features multiple layers of epoxy-bonded, blended fiber media that successfully coalesce oil aerosols and trap remaining solid contaminants. This 1 micron compressed air filter ensures a maximum remaining oil content of 1.0 ppm w/w at standard 100°F inlet temperatures, adhering to CAGI ADF400 standards. With a flow rating of 60 SCFM and a maximum temperature threshold of 150°F, this replacement filter element effectively prevents downstream contamination in pneumatic tools and instrumentation. Its matrix-blended fiber media provides a large surface area for high efficiency filtration while maintaining a low pressure drop. The silicone-free construction and chemically resistant end caps ensure long-term durability in demanding HVACR and industrial environments.
Key Benefits:
- Dual-Stage Coalescing: Effectively removes liquid water, oil aerosols, and solid particulate down to 1.0 micron.
- Enhanced Durability: Features a corrosion-resistant inner and outer stainless steel core for structural integrity under pressure.
- System Protection: Acts as a critical pre-filter for high-efficiency oil removal stages or an after-filter for refrigerated and desiccant dryers.
- Low Pressure Drop: Optimized fiber density ensures high flow rates of 60 SCFM without significant energy loss.
- Easy Installation: Push-on design with piston-type seals prevents air bypass and simplifies field replacement.
Common Questions:
What is the micron rating for the Hankison Grade 7 element?
The Hankison E7-20 is rated for 1.0 micron particulate removal, making it a general-purpose air line filter suitable for liquid water and oil removal.
How often should I replace the E7-20 filter element?
While service life depends on air quality, technicians typically replace these elements every 6,000 to 8,000 hours of operation or when the pressure differential indicates the media is saturated.
Is this element compatible with HF7-20 series housings?
Yes, the E7-20 is specifically designed for use in Hankison HF7-20-3 and HF7-20-4 series filter housings, ensuring a precise fit and seal.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
