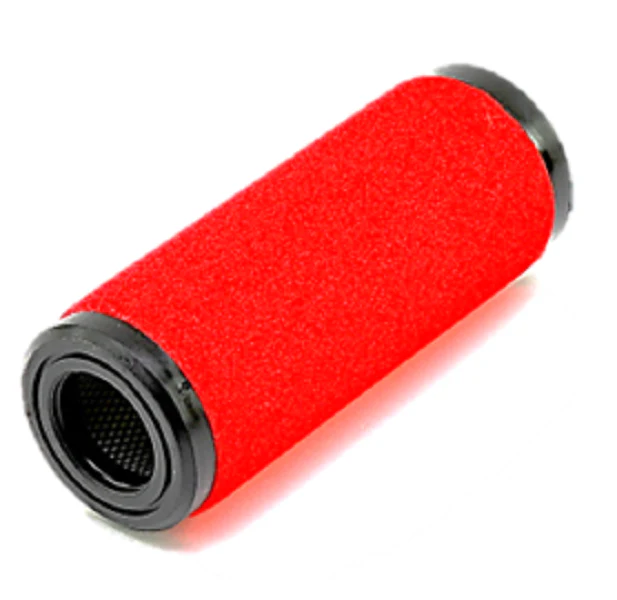

Hankison E5-24 Filter Element
The Hankison E5-24 Filter Element is a Grade 5 high-efficiency oil removal component engineered for precision coalescing filtration in critical compressed air systems. Built for the veteran technician who demands zero-fail performance, this element utilizes a two-stage filtration process to achieve a maximum remaining oil content of 0.008 ppm w/w. The first stage features a coated, closed-cell foam sleeve that provides initial pre-filtration and uniform flow distribution, protecting the secondary stage of matrix-blended fiber media. This multi-layered design ensures the removal of 0.01 micron particulate and 99.99% of oil aerosols. This 100 SCFM rated filter is the standard solution for installation upstream of desiccant air dryers or downstream of refrigerated units to prevent desiccant contamination and ensure high-quality air for industrial painting and pneumatic instrumentation. With a corrosion-resistant inner and outer stainless steel core, the E5-24 maintains structural integrity under fluctuating pressures without compromising the piston-type seals that eliminate unfiltered air bypass.
Key Benefits:- Grade 5 Coalescing: Provides superior oil aerosol removal down to 0.01 micron, critical for protecting downstream sensitive equipment.
- Two-Stage Media: Integrated pre-filtration sleeve extends the service life of the primary coalescing matrix.
- Rugged Construction: Features corrosion-resistant stainless steel inner and outer cores to withstand harsh industrial environments.
- Piston-Action Seals: Positive-fit internal seals prevent unfiltered air bypass, maintaining consistent air quality standards.
- Thermal Stability: Specifically designed to maintain high-efficiency filtration at operating temperatures up to 150°F.
- Which filter housings are compatible with the E5-24? This element is a direct fit for Hankison HF5-24 series housings, specifically models HF5-24-6-DGL and HF5-24-8-DGL.
- Does this filter protect desiccant air dryers? Yes, the Grade 5 element is the industry standard for removing oil and moisture aerosols prior to entering a desiccant dryer to prevent bed poisoning.
- How do I verify it is time for a replacement? A pressure drop exceeding 10 PSI across the housing typically indicates the media is saturated and needs a fresh Hankison E5-24 element to restore efficiency.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $243.56
-65%$243.56
$85.25Hankison E5-24 Filter Element
The Hankison E5-24 Filter Element is a Grade 5 high-efficiency oil removal component engineered for precision coalescing filtration in critical compressed air systems. Built for the veteran technician who demands zero-fail performance, this element utilizes a two-stage filtration process to achieve a maximum remaining oil content of 0.008 ppm w/w. The first stage features a coated, closed-cell foam sleeve that provides initial pre-filtration and uniform flow distribution, protecting the secondary stage of matrix-blended fiber media. This multi-layered design ensures the removal of 0.01 micron particulate and 99.99% of oil aerosols. This 100 SCFM rated filter is the standard solution for installation upstream of desiccant air dryers or downstream of refrigerated units to prevent desiccant contamination and ensure high-quality air for industrial painting and pneumatic instrumentation. With a corrosion-resistant inner and outer stainless steel core, the E5-24 maintains structural integrity under fluctuating pressures without compromising the piston-type seals that eliminate unfiltered air bypass.
Key Benefits:- Grade 5 Coalescing: Provides superior oil aerosol removal down to 0.01 micron, critical for protecting downstream sensitive equipment.
- Two-Stage Media: Integrated pre-filtration sleeve extends the service life of the primary coalescing matrix.
- Rugged Construction: Features corrosion-resistant stainless steel inner and outer cores to withstand harsh industrial environments.
- Piston-Action Seals: Positive-fit internal seals prevent unfiltered air bypass, maintaining consistent air quality standards.
- Thermal Stability: Specifically designed to maintain high-efficiency filtration at operating temperatures up to 150°F.
- Which filter housings are compatible with the E5-24? This element is a direct fit for Hankison HF5-24 series housings, specifically models HF5-24-6-DGL and HF5-24-8-DGL.
- Does this filter protect desiccant air dryers? Yes, the Grade 5 element is the industry standard for removing oil and moisture aerosols prior to entering a desiccant dryer to prevent bed poisoning.
- How do I verify it is time for a replacement? A pressure drop exceeding 10 PSI across the housing typically indicates the media is saturated and needs a fresh Hankison E5-24 element to restore efficiency.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
