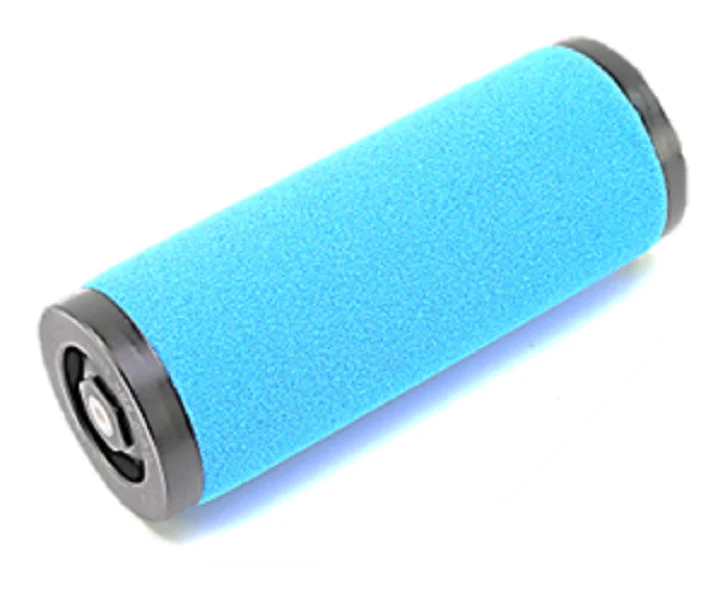

Hankison E3-24 Filter Element
For high-performance compressed air systems requiring ultra-clean, oil-free delivery, the Hankison E3-24 Filter Element is a Grade 3 Maximum Efficiency Oil Removal Filter designed for the most critical industrial applications. As a veteran-grade coalescing filter element, the E3-24 utilizes a sophisticated two-stage filtration process to target ultrafine oil aerosols and solid particulates down to 0.01 micron. The first stage features a coated, closed-cell foam sleeve that serves as a high-efficiency pre-filter and flow dispenser, while the second stage consists of multiple layers of matrix-blended fiber media for superior coalescence. This technical construction ensures a maximum remaining oil content of just 0.0008 ppm w/w, effectively protecting downstream equipment like desiccant air dryers and electronics manufacturing lines from oil contamination. Built with corrosion-resistant stainless steel inner and outer cores, this element maintains structural integrity under rigorous flow demands while minimizing pressure drop across the HF series filter housing. For contractors managing nitrogen replacement or sensitive pneumatic conveying systems, the E3-24 provides the ISO Class 1 air quality necessary for operational compliance.
Key Benefits for Technicians:
- Ultra-High Efficiency Filtration: Removes 99.9999+% of solids 0.01 micron and larger for oil-free compressed air.
- Advanced Two-Stage Design: Integrated foam pre-filter reduces loading on the primary matrix blended fiber media.
- Industrial Durability: Rugged stainless steel cores and chemically resistant end caps withstand temperatures up to 150°F.
- Seamless Compatibility: Direct fit for Hankison HF3-24 series housings, including HF3-24-6-DGL and HF3-24-8-DGL models.
- Contaminant Protection: Prevents oil carryover from fouling membrane dryers and sensitive pneumatic components.
Common Questions:
What is the micron rating for the Hankison E3-24?
The E3-24 is a Grade 3 element rated for 0.01 micron particulate removal and ultra-fine oil coalescence.
When should the E3-24 filter be replaced?
To maintain peak filtration efficiency and prevent excessive pressure drop, elements should typically be replaced every 12 months or when the pressure differential indicates the media is saturated.
Is this element compatible with desiccant dryers?
Yes, this high-efficiency coalescing filter is specifically intended for installation upstream of desiccant or membrane dryers to protect the regenerative media from oil contamination.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $267.81
-65%$267.81
$93.73Hankison E3-24 Filter Element
For high-performance compressed air systems requiring ultra-clean, oil-free delivery, the Hankison E3-24 Filter Element is a Grade 3 Maximum Efficiency Oil Removal Filter designed for the most critical industrial applications. As a veteran-grade coalescing filter element, the E3-24 utilizes a sophisticated two-stage filtration process to target ultrafine oil aerosols and solid particulates down to 0.01 micron. The first stage features a coated, closed-cell foam sleeve that serves as a high-efficiency pre-filter and flow dispenser, while the second stage consists of multiple layers of matrix-blended fiber media for superior coalescence. This technical construction ensures a maximum remaining oil content of just 0.0008 ppm w/w, effectively protecting downstream equipment like desiccant air dryers and electronics manufacturing lines from oil contamination. Built with corrosion-resistant stainless steel inner and outer cores, this element maintains structural integrity under rigorous flow demands while minimizing pressure drop across the HF series filter housing. For contractors managing nitrogen replacement or sensitive pneumatic conveying systems, the E3-24 provides the ISO Class 1 air quality necessary for operational compliance.
Key Benefits for Technicians:
- Ultra-High Efficiency Filtration: Removes 99.9999+% of solids 0.01 micron and larger for oil-free compressed air.
- Advanced Two-Stage Design: Integrated foam pre-filter reduces loading on the primary matrix blended fiber media.
- Industrial Durability: Rugged stainless steel cores and chemically resistant end caps withstand temperatures up to 150°F.
- Seamless Compatibility: Direct fit for Hankison HF3-24 series housings, including HF3-24-6-DGL and HF3-24-8-DGL models.
- Contaminant Protection: Prevents oil carryover from fouling membrane dryers and sensitive pneumatic components.
Common Questions:
What is the micron rating for the Hankison E3-24?
The E3-24 is a Grade 3 element rated for 0.01 micron particulate removal and ultra-fine oil coalescence.
When should the E3-24 filter be replaced?
To maintain peak filtration efficiency and prevent excessive pressure drop, elements should typically be replaced every 12 months or when the pressure differential indicates the media is saturated.
Is this element compatible with desiccant dryers?
Yes, this high-efficiency coalescing filter is specifically intended for installation upstream of desiccant or membrane dryers to protect the regenerative media from oil contamination.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
