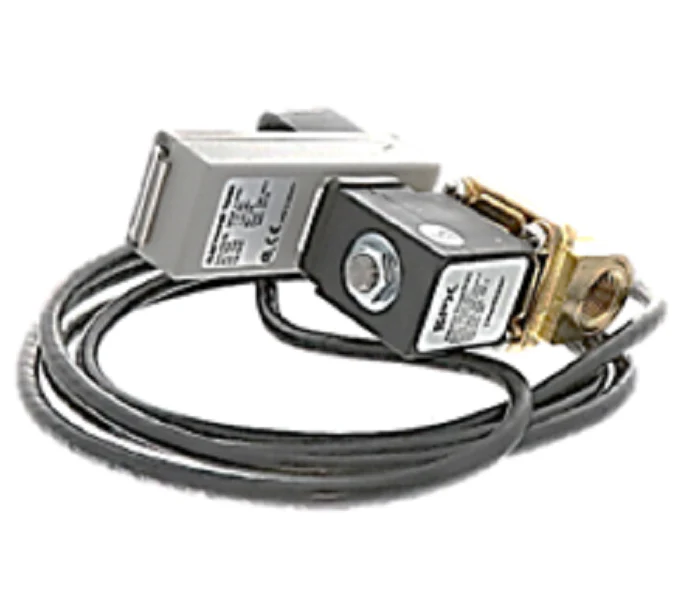

Hankison 532-03-300-1 Electric Auto Drain
Automate your condensate management with the Hankison 532-03-300-1, an industrial-grade electric timed drain engineered for heavy-duty compressed air systems. Operating on a standard 115V AC power supply, this 530 Series model features an internal pilot-operated diaphragm solenoid valve capable of handling 300 psi maximum operating pressure. Designed to eliminate manual intervention, it effectively discharges oil and water emulsions from receivers, dryers, and filters to prevent downstream corrosion and contamination. The integrated solid-state timer allows for precise adjustment of both the interval between cycles and the drain open duration, ensuring optimal performance for varied condensate loads. Built with a NEMA 4 enclosure, this unit stands up to harsh mechanical environments while the 1/4" NPT connections and 7/16" orifice provide high-flow condensate removal without the risk of clogging from particles up to 1/2 inch in diameter.
Key Benefits- Precise Cycle Control: Independent settings for valve open time and cycle intervals allow for tailored moisture removal based on specific system demand.
- Industrial Durability: The NEMA 4 rated design ensures reliable operation in wash-down or dusty environments common in manufacturing plants.
- Reduced Maintenance: Automating the drainage process prevents liquid carryover, protecting pneumatic tools and piping from premature failure.
- High Pressure Capacity: Safely maintains 300 psig system integrity, making it compatible with most standard industrial air compressors.
- Integrated Protection: Includes an internal pilot and is resistant to large contaminants, ensuring the solenoid remains functional even in heavily fouled lines.
How do I set the timer for different humidity levels?
The Hankison 532-03-300-1 features dual knobs: one for the time between discharges and one for how long the valve stays open. In high-humidity environments, decrease the interval time to purge condensate more frequently and prevent moisture buildup in the receiver tank.
Can this drain handle oil-laden condensate from lubricated compressors?
Yes, the internal pilot-operated diaphragm is designed to discharge water, oil, and synthetic lubricant emulsions. However, it is recommended to inspect the internal strainer periodically to ensure peak flow rates.
What is the maximum particle size this unit can pass?
This model is specifically engineered to be resistant to large particles up to 1/2 inch in diameter, significantly reducing the likelihood of a stuck-open or clogged valve compared to standard small-orifice drains.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $337.38
-65%$337.38
$118.08Hankison 532-03-300-1 Electric Auto Drain
Automate your condensate management with the Hankison 532-03-300-1, an industrial-grade electric timed drain engineered for heavy-duty compressed air systems. Operating on a standard 115V AC power supply, this 530 Series model features an internal pilot-operated diaphragm solenoid valve capable of handling 300 psi maximum operating pressure. Designed to eliminate manual intervention, it effectively discharges oil and water emulsions from receivers, dryers, and filters to prevent downstream corrosion and contamination. The integrated solid-state timer allows for precise adjustment of both the interval between cycles and the drain open duration, ensuring optimal performance for varied condensate loads. Built with a NEMA 4 enclosure, this unit stands up to harsh mechanical environments while the 1/4" NPT connections and 7/16" orifice provide high-flow condensate removal without the risk of clogging from particles up to 1/2 inch in diameter.
Key Benefits- Precise Cycle Control: Independent settings for valve open time and cycle intervals allow for tailored moisture removal based on specific system demand.
- Industrial Durability: The NEMA 4 rated design ensures reliable operation in wash-down or dusty environments common in manufacturing plants.
- Reduced Maintenance: Automating the drainage process prevents liquid carryover, protecting pneumatic tools and piping from premature failure.
- High Pressure Capacity: Safely maintains 300 psig system integrity, making it compatible with most standard industrial air compressors.
- Integrated Protection: Includes an internal pilot and is resistant to large contaminants, ensuring the solenoid remains functional even in heavily fouled lines.
How do I set the timer for different humidity levels?
The Hankison 532-03-300-1 features dual knobs: one for the time between discharges and one for how long the valve stays open. In high-humidity environments, decrease the interval time to purge condensate more frequently and prevent moisture buildup in the receiver tank.
Can this drain handle oil-laden condensate from lubricated compressors?
Yes, the internal pilot-operated diaphragm is designed to discharge water, oil, and synthetic lubricant emulsions. However, it is recommended to inspect the internal strainer periodically to ensure peak flow rates.
What is the maximum particle size this unit can pass?
This model is specifically engineered to be resistant to large particles up to 1/2 inch in diameter, significantly reducing the likelihood of a stuck-open or clogged valve compared to standard small-orifice drains.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
