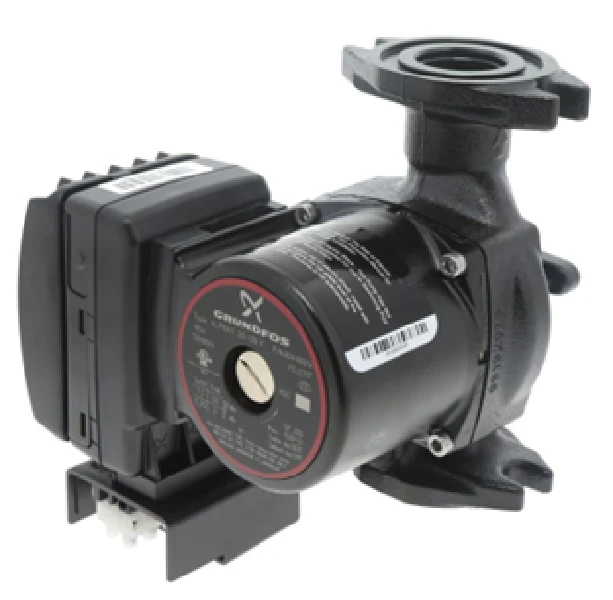

Grundfos 99490914 Pump
The Grundfos 99490914 is a professional-grade ALPHA1 26-99F high-efficiency circulator engineered for demanding hydronic heating and cooling applications. Built with a robust cast iron pump housing and an advanced ECM variable speed motor, this pump delivers a maximum head of 32.48 feet and a flow rate up to 26 GPM. Designed specifically for HVAC technicians, it features a 0-10V analog input for seamless integration into boiler management systems (BMS) and an alarm output signal for real-time diagnostics. The magnetite-resistant design and ceramic shaft ensure long-term reliability in systems prone to iron oxide buildup. This 115V single-phase unit utilizes a GF 15/26 flange connection, making it a drop-in replacement for the legacy 52722552 model. With a 360 mNm starting torque, the ALPHA1 26-99F circulator pump effectively clears debris and sediment, maintaining optimal system pressure and flow with minimal energy consumption.
Key Benefits
- System Integration: Externally controlled via a 0-10 VDC signal, allowing precise speed modulation by modern building controllers.
- Superior Reliability: Features a ceramic shaft and stainless-steel bearing plate to resist magnetite and system debris.
- High Torque Performance: 360 mNm starting torque prevents rotor seizing after seasonal shutdowns.
- Versatile Application: Suitable for radiant heating, fan coil units, and solar thermal systems with a wide liquid temperature range of 14°F to 203°F.
- Fail-Safe Logic: The pump defaults to maximum speed if the control signal is lost, preventing system freeze-ups or overheating.
Common Questions
What flange size does the ALPHA1 26-99F use?
This model utilizes a standard GF 15/26 flange with a 6-1/2 inch port-to-port length, compatible with standard 1-1/4 inch piping connections.
Can this pump be used in open-loop potable water systems?
No, the 99490914 features a cast iron housing designed for closed-loop heating and cooling. For domestic hot water recirculation, a stainless steel model is required.
Does it require external motor protection?
The electronically commutated motor includes internal thermal protection, eliminating the need for additional external motor starters or overloads.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
