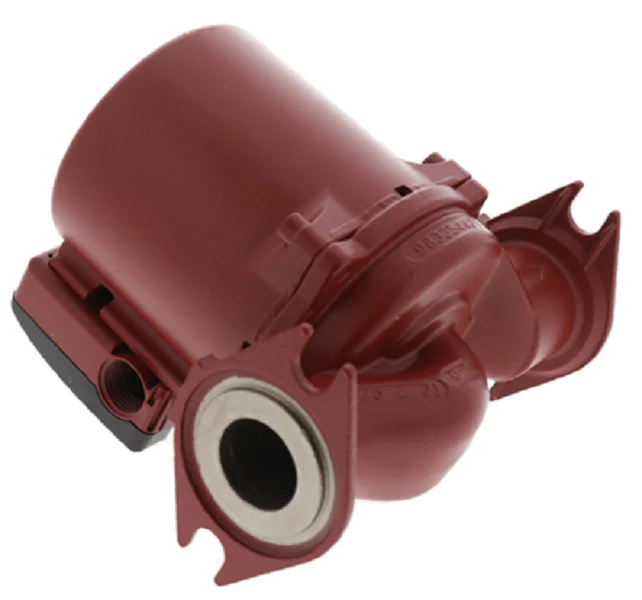

Grundfos 98961763 Pump
The Grundfos 98961763, model UPS26-99SFC, is a heavy-duty 3-speed stainless steel circulator pump designed for high-performance fluid handling in both open and closed-loop systems. Engineered for technicians who prioritize reliability, this "Super Brute" series pump features a 1/6 HP canned rotor motor that eliminates the need for mechanical shaft seals, ensuring whisper-quiet operation and long-term durability in sound-sensitive environments. With a maximum flow rate of 33 GPM and a 29-foot head capacity, it provides the versatility needed for hydronic heating, fan coil units, and potable water recirculation. The built-in integral check valve (SFC) simplifies installation by preventing backflow without the need for additional external hardware. Operating at 115V 60Hz, it offers three selectable speeds to match specific system requirements, optimizing efficiency and pressure drop management. The stainless steel pump housing provides superior corrosion resistance, making it an essential component for demanding residential and light commercial HVACR applications.
Key Benefits for Your Installation:
- Selection of 3-speed motor settings allows for precise matching of flow to system head requirements.
- Integrated Check Valve (IFC) reduces installation time and material costs by preventing reverse flow.
- Stainless steel construction ensures compatibility with potable water and open-loop solar or radiant systems.
- Canned rotor design utilizes the pumped liquid for bearing lubrication, providing virtually maintenance-free performance.
- Internal thermal protection prevents motor burnout during high-load periods or blocked rotor conditions.
Common Questions About the UPS26-99SFC:
Can this pump be used in a potable water system?Yes, the stainless steel housing is designed for both hydronic heating and potable water recirculation, meeting non-ferrous requirements.
What is the proper orientation for the terminal box?This specific iteration is configured with a 9H terminal box position, though the motor head can typically be rotated to suit site-specific wiring needs.
Are flanges included with the 98961763?No, this model uses a standard 2-bolt flange connection. Flange sets must be purchased separately based on the pipe size of the system (typically 3/4" to 1-1/2").
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
