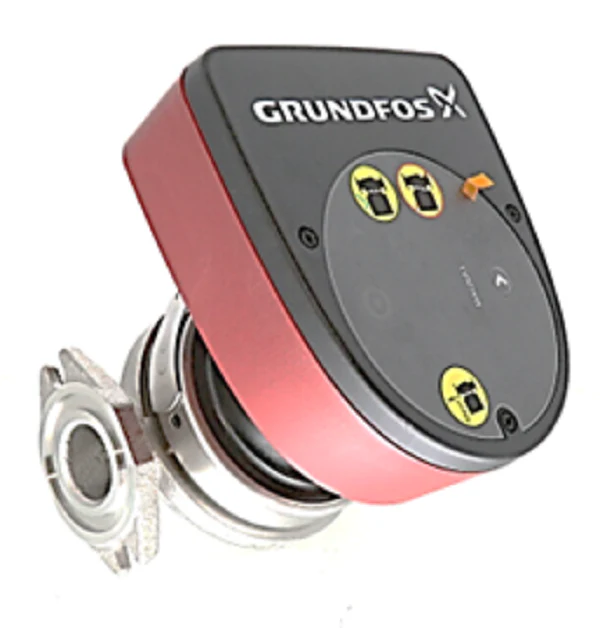

Grundfos 98126825 Pump
The Grundfos 98126825 MAGNA1 SS 32-100 is an industrial-grade stainless steel circulator pump engineered for reliable performance in domestic hot water recirculation and commercial HVAC systems. This 1/6 HP unit features a permanent magnet motor and an integrated frequency converter, providing automatic adjustment to system demands. Designed as a high-efficiency variable speed pump, it significantly reduces energy consumption compared to traditional fixed-speed models. The canned-rotor design ensures the 115-230V motor and pump form a single unit without a shaft seal, utilizing the pumped liquid for bearing lubrication to achieve maintenance-free operation. With a maximum head of 32.8 feet and compatibility with GF 15/26 flanges, it serves as a robust drop-in replacement for aging hydronic systems. The intuitive user interface includes the Grundfos Eye LED indicator for instant visual status of pump operation and troubleshooting, ensuring the Grundfos MAGNA1 32-100 maintains optimal flow across varied pressure curves.
Key Benefits for Technicians:- High-Efficiency ECM Technology: Electronically commutated motor reduces energy usage by up to 50% while providing 360 mNm starting torque to clear system debris.
- Corrosion-Resistant Construction: Stainless steel pump housing (ASTM A351-CF8) is NSF/ANSI 372 certified, making it ideal for potable domestic hot water applications.
- Versatile Control Modes: Features nine selectable settings, including three proportional-pressure curves, three constant-pressure curves, and three fixed-speed settings for precise system balancing.
- Simplified Installation: Dual voltage 115-230V 1-phase compatibility and a compact 6-1/2 inch port-to-port length streamline field wiring and piping integration.
- Wide Temperature Tolerance: Handles fluid temperatures ranging from 14°F to 230°F, suitable for both chilled water and high-heat hydronic loops.
What is the maximum operating pressure for this model?
The unit is rated for a maximum operating pressure of 175 PSI (PN 12), ensuring stability in closed-loop commercial systems.
Does this pump require external motor protection?
No, the integrated electronics provide full thermal and overload protection, eliminating the need for additional external motor starters.
Can this be used as a direct replacement for older Grundfos circulators?
Yes, the MAGNA1 series is designed with standard GF flanging to replace legacy UPS or earlier MAGNA models without extensive piping modifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
