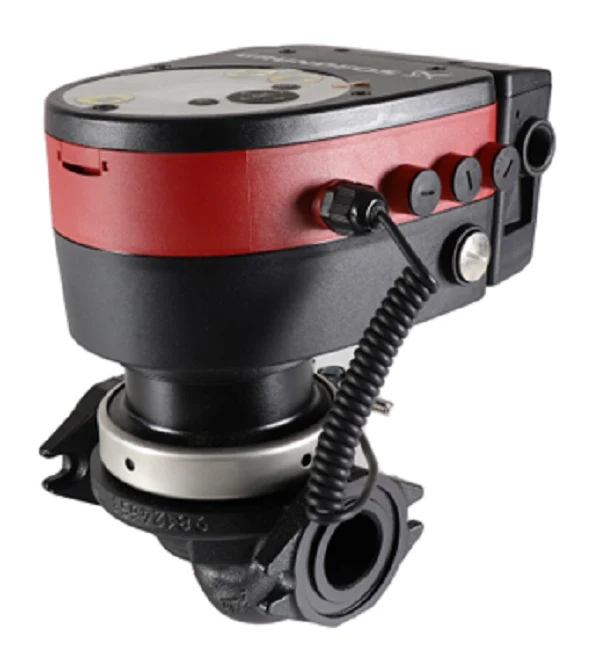

Grundfos 98126824 Pump
The Grundfos 98126824 MAGNA3 32-100 is an industry-leading variable speed circulator pump designed for high-performance hydronic heating, cooling, and hot water recirculation systems. Engineered with a cast iron housing and a high-efficiency ECM permanent magnet motor, this 1/6HP unit automatically adapts to system demand, significantly reducing energy consumption. It features a broad 115/230V voltage range and a robust 174 PSI maximum operating pressure, making it a versatile choice for both residential and commercial mechanical rooms. Contractors benefit from the integrated AUTOADAPT and FLOWADAPT technologies, which eliminate the need for external throttling valves and complex differential pressure sensors. With its flanged connection and compact 6-1/2" port-to-port length, the MAGNA3 32-100 GF ensures a straightforward retrofit or new installation. The intuitive TFT display and Bluetooth connectivity via the Grundfos GO app allow for real-time diagnostics, performance tracking, and seamless integration into building management systems.
Key Benefits:- Intelligent Control: Proprietary AUTOADAPT technology automatically finds the optimal duty point, ensuring the Grundfos MAGNA3 32-100 delivers maximum efficiency without manual adjustment.
- Superior Efficiency: The high-efficiency ECM motor and variable speed control meet strict energy standards, providing a market-leading Energy Efficiency Index (EEI) of 0.18.
- Versatile Compatibility: Dual-voltage 115/230V capability and cast iron construction make it suitable for heating surfaces, chilled water systems, and ground-source heat pumps.
- Advanced Monitoring: Includes a built-in energy meter and wireless multipump function for lead/lag or cascade operation in multi-pump arrays.
- Reduced System Costs: Features like FLOWLIMIT reduce the requirement for additional balancing valves, saving on both material and labor.
What is the maximum head and flow for the MAGNA3 32-100?
The pump delivers a maximum head of 32.81 feet and a maximum flow rate of approximately 55 GPM, depending on the specific system curve and fluid viscosity.
Can this pump be used for domestic hot water (potable) systems?
This specific model (98126824) features a cast iron housing designed for closed-loop heating and cooling. For domestic open-loop potable water, the stainless steel "N" version (98126826) is required to meet sanitation standards.
How do I configure the pump settings without a separate controller?
The unit features a built-in TFT color display for manual configuration. Additionally, it supports wireless communication with the Grundfos GO app for advanced commissioning and fieldbus integration via optional CIM modules.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,714.28
-65%$1,714.28
$600.00Grundfos 98126824 Pump
The Grundfos 98126824 MAGNA3 32-100 is an industry-leading variable speed circulator pump designed for high-performance hydronic heating, cooling, and hot water recirculation systems. Engineered with a cast iron housing and a high-efficiency ECM permanent magnet motor, this 1/6HP unit automatically adapts to system demand, significantly reducing energy consumption. It features a broad 115/230V voltage range and a robust 174 PSI maximum operating pressure, making it a versatile choice for both residential and commercial mechanical rooms. Contractors benefit from the integrated AUTOADAPT and FLOWADAPT technologies, which eliminate the need for external throttling valves and complex differential pressure sensors. With its flanged connection and compact 6-1/2" port-to-port length, the MAGNA3 32-100 GF ensures a straightforward retrofit or new installation. The intuitive TFT display and Bluetooth connectivity via the Grundfos GO app allow for real-time diagnostics, performance tracking, and seamless integration into building management systems.
Key Benefits:- Intelligent Control: Proprietary AUTOADAPT technology automatically finds the optimal duty point, ensuring the Grundfos MAGNA3 32-100 delivers maximum efficiency without manual adjustment.
- Superior Efficiency: The high-efficiency ECM motor and variable speed control meet strict energy standards, providing a market-leading Energy Efficiency Index (EEI) of 0.18.
- Versatile Compatibility: Dual-voltage 115/230V capability and cast iron construction make it suitable for heating surfaces, chilled water systems, and ground-source heat pumps.
- Advanced Monitoring: Includes a built-in energy meter and wireless multipump function for lead/lag or cascade operation in multi-pump arrays.
- Reduced System Costs: Features like FLOWLIMIT reduce the requirement for additional balancing valves, saving on both material and labor.
What is the maximum head and flow for the MAGNA3 32-100?
The pump delivers a maximum head of 32.81 feet and a maximum flow rate of approximately 55 GPM, depending on the specific system curve and fluid viscosity.
Can this pump be used for domestic hot water (potable) systems?
This specific model (98126824) features a cast iron housing designed for closed-loop heating and cooling. For domestic open-loop potable water, the stainless steel "N" version (98126826) is required to meet sanitation standards.
How do I configure the pump settings without a separate controller?
The unit features a built-in TFT color display for manual configuration. Additionally, it supports wireless communication with the Grundfos GO app for advanced commissioning and fieldbus integration via optional CIM modules.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
