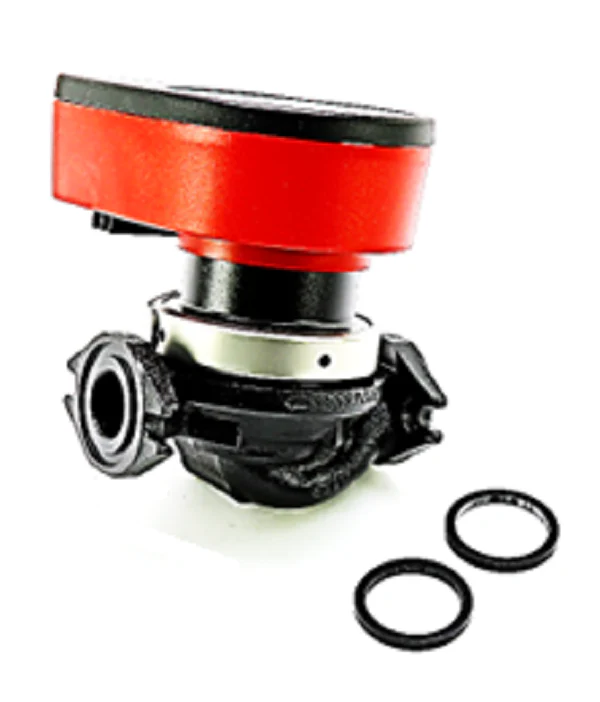

Grundfos 98126823 Pump
The Grundfos 98126823 is a high-efficiency MAGNA1 32-100 GF circulator pump engineered for demanding commercial and industrial hydronic systems. Featuring a robust cast iron pump housing and a 1/6 HP ECM motor, this variable speed pump significantly reduces energy consumption by matching output to system demand. It operates on a versatile 115/230V single-phase power supply and supports a 165mm port-to-port length with a GF 15/26 flange connection. This model delivers a maximum head of 32.81 feet and a flow rate up to 45 GPM, making it a reliable choice for HVAC heating, cooling, and boiler loop applications. With the integrated Grundfos Eye for real-time status monitoring and nine selectable control modes—including proportional pressure, constant pressure, and constant speed—contractors can quickly optimize the variable speed circulator pump for any duty point. The canned-rotor design ensures quiet, maintenance-free operation in liquid temperatures ranging from 14°F to 230°F.
Key Benefits- Advanced Energy Efficiency: The ECM motor technology and variable speed control minimize power draw, often reducing energy usage by over 50% compared to standard fixed-speed pumps.
- Simplified Commissioning: An intuitive interface allows for fast selection between nine predefined performance curves with a single touch.
- Broad Compatibility: The 115/230V dual-voltage capability and standard GF flange simplify integration into existing hydronic heating systems.
- Technical Reliability: High starting torque effectively clears system debris, while the cast iron construction supports a maximum operating pressure of 174 psi.
Is the Grundfos 98126823 compatible with Building Management Systems (BMS)?
Yes, the MAGNA1 32-100 GF includes a digital start/stop input and a potential-free fault relay, allowing for essential integration and remote monitoring within a larger HVAC control network.
Can this pump handle high-temperature applications?
This Grundfos MAGNA1 is rated for fluid temperatures up to 230°F, making it suitable for both chilled water and high-temp primary heating loops.
What is the purpose of the Grundfos Eye?
The Grundfos Eye provides immediate visual feedback on the pump's operational status, including light patterns that indicate if the unit is running normally or experiencing a warning/alarm, facilitating rapid troubleshooting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
