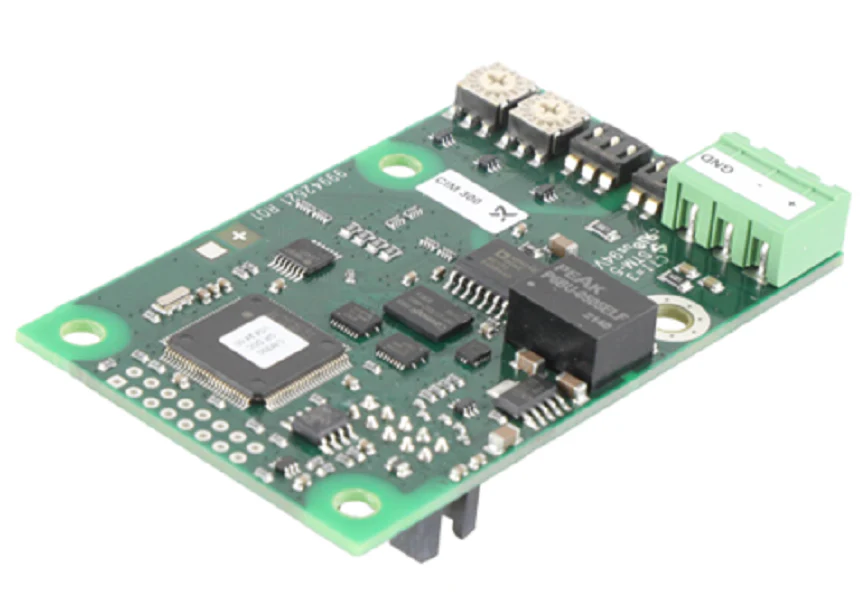

Grundfos 96893770 Module
The Grundfos 96893770 CIM 300 is an essential communication interface module engineered for seamless integration of Grundfos pumping systems into BACnet MS/TP networks. Designed for professional contractors managing commercial HVACR and process cooling systems, this add-on module allows for high-level data exchange between Grundfos E-pumps, MAGNA3 circulators, and the building management system. By utilizing the RS-485 interface, the CIM 300 module provides real-time monitoring of critical parameters such as flow rates, head pressure, and energy consumption, while enabling precise remote control over pump speed and operation modes. This robust BTL-certified interface ensures full interoperability with twisted-pair building automation controllers. Whether you are optimizing a localized mechanical room or a distributed hydronic network, this module simplifies Building Automation System integration by providing standardized communication protocols without the need for complex gateways or third-party translators.
- Universal Protocol Support: Facilitates direct communication between Grundfos hardware and BACnet MS/TP networks.
- Granular Data Monitoring: Provides diagnostic feedback, power consumption metrics, and operational alarms to the master controller.
- Simplified Commissioning: Features a rotary switch for easy DIP switch addressing and standard RS-485 lead termination.
- Broad Compatibility: Fits internal communication slots on MAGNA3, NBE, and MTRE pump series.
Common Questions
How is the CIM 300 addressed within a BACnet network?
The module uses hardware switches to set the MAC address and baud rate, ensuring the system recognizes the device as a standard BACnet object without software-heavy configuration.
Does this module support BACnet IP?
The 96893770 is specifically designed for BACnet MS/TP (Master-Slave/Token-Passing) over RS-485. For Ethernet-based BACnet IP, a different CIM variant is required.
Can I monitor motor temperature through this interface?
Yes, the module transmits all available internal sensor data from the pump's frequency converter, including motor temp, frequency, and current status, back to the supervisor.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
