Grundfos 96806135 Isolation Valve Kit
Professional-grade isolation is critical for hydronic system longevity, and the Grundfos 96806135 Isolation Valve Kit provides a high-reliability solution for 3/4 inch sweat circulator pump installations. This lead-free dielectric isolation valve set is engineered to fit Grundfos UP, UPS, ALPHA, and MAGNA series pumps featuring a GF 15/26 flange. By utilizing a full port shut-off ball valve design, this kit allows technicians to service or replace circulators without the time-consuming process of draining the entire system. The inclusion of dielectric isolation sleeves is a technical necessity, effectively preventing galvanic corrosion between dissimilar metals in the loop. Each kit is a comprehensive 2-pack that includes rotating flanges for flexible pump positioning, lever-handled valves, EPDM gaskets, and all required mounting hardware. Rated for 150 PSI and temperatures up to 230°F, this bronze isolation valve kit ensures a leak-free, high-temperature interface that meets IAPMO 6591 standards for modern hydronic heating and plumbing applications.
Key Benefits
- System Isolation: Enables rapid pump maintenance or replacement without draining the system, minimizing downtime and labor costs.
- Galvanic Protection: Integrated dielectric isolation prevents electrolytic corrosion, extending the life of both the pump and the piping.
- Full Flow Design: The full port ball valve ensures zero restricted flow, maintaining the pump's hydraulic performance and head pressure.
- Heavy-Duty Construction: Built from low-lead bronze with high-quality EPDM gaskets to withstand 230°F operating environments.
- Installation Flexibility: Swivel/rotating flanges allow for optimum pump orientation even in tight mechanical room configurations.
Common Questions
What pumps are compatible with the Grundfos 96806135 kit?This kit is specifically designed for pumps with a GF 15/26 flange connection, including most Grundfos UP15, UP26, UPS, ALPHA, and MAGNA standard residential circulators.

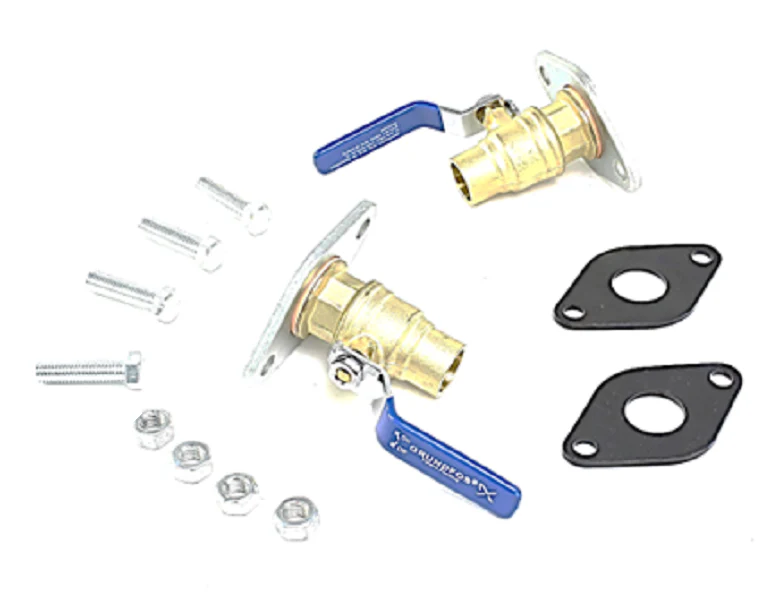

Does this kit include all necessary hardware for installation?Yes, the Grundfos 96806135 includes two 3/4" sweat valves, two rotating flanges, two EPDM gaskets, two dielectric sleeves, and four bolts with nuts.
Can these valves be used in potable water systems?Yes, these are lead-free bronze isolation valves and are compliant with low-lead laws for potable water and hydronic heating applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
