Grundfos 92603106 Pump

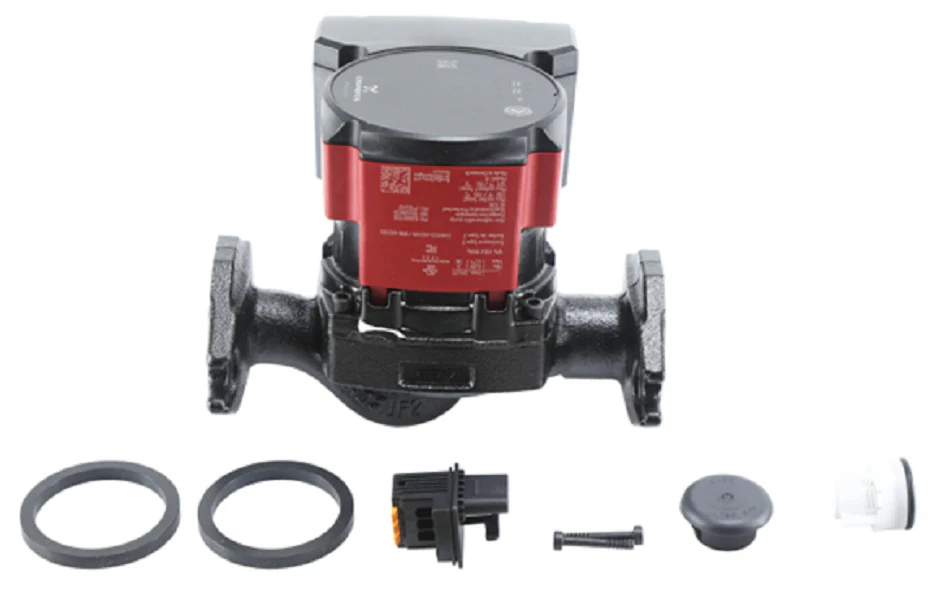

The Grundfos 92603106 (UPSe 15-58F) represents a professional-tier upgrade for hydronic and radiant heating systems. As a high-efficiency ECM circulator pump, this 115V wet-rotor unit delivers a maximum flow of 13.6 GPM and up to 19 feet of head pressure. Designed to replace the traditional UPS15-58FC, the UPSE 15-58F 115V integrates an electronically commutated motor that significantly reduces power consumption compared to standard induction models. Contractors benefit from the 9-mode control interface, featuring three constant pressure, three proportional pressure, and three constant speed curves to match diverse system requirements. The cast iron housing includes a removable check valve and a toolless power connector for simplified field wiring. Built-in dry-run protection and a self-venting design protect the stator housing from air-lock and mechanical failure, ensuring reliable performance in demanding residential and commercial loop applications.
Key Benefits- Energy Efficiency: Integrated ECM motor technology utilizes a permanent magnet rotor to reduce electricity usage and improve long-term system performance.
- Versatile Control: Features a single-button interface to toggle between nine unique performance settings for precise balancing.
- Fast Installation: A toolless, removable power lever connector allows for external wiring, significantly cutting down on-site labor.
- Operational Reliability: Includes internal dry-run protection and robust startup logic to automatically clear minor blockages or debris.
- Quiet Operation: The self-venting wet-rotor design eliminates air-induced noise and maintains a 25 dB(A) sound pressure level.
What are the primary applications for the UPSe 15-58F?
This pump is engineered for closed-loop hydronic heating, radiant floor heating, and fan coil systems. Its multiple control modes allow it to operate as a zone pump or a primary circulator.
Can the UPSe 15-58F replace a standard 3-speed UPS 15-58?
Yes, it is the direct high-efficiency replacement for the UPS15-58FC. It shares the same flange-to-flange dimensions, making it a drop-in upgrade for most existing 115V installations.
Is an external motor protection device required?
No, this unit is internally protected against thermal overload and electrical faults, so no additional external motor protection is necessary for operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
