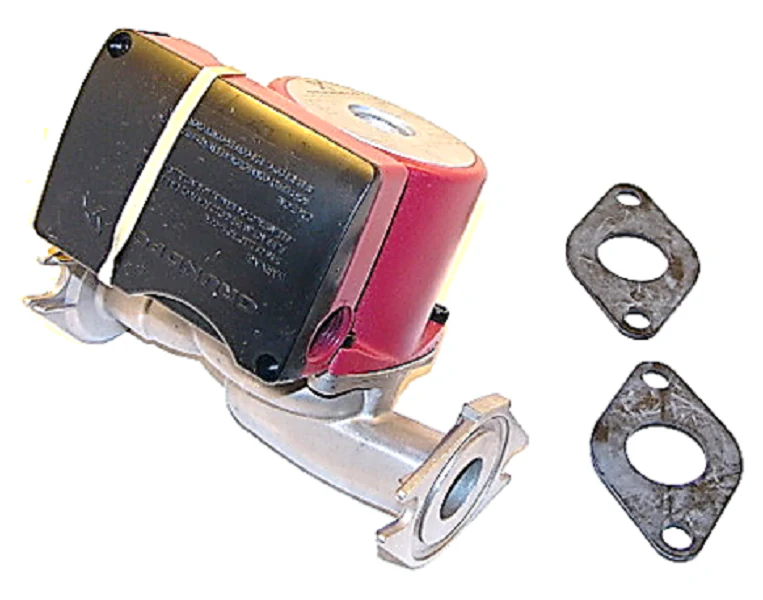

Grundfos 59896771 Pump
As a veteran tech, I know you need a Grundfos 59896771 that drops right into existing hydronic heating systems without a headache. This Grundfos UP15-29SF is a professional-grade stainless steel circulator pump designed specifically for open-loop residential and commercial applications, including hot water recirculation and radiant heating. Operating at 115V with a 1/12 HP motor, it delivers a maximum flow of 20.7 GPM and a max head of 9.8 feet. The 1-speed motor is impedance protected and features a 9H terminal box position for versatile wiring in tight spots. With a corrosion-resistant wet-rotor design, this unit handles liquid temperatures from 36°F to 230°F. The GF 15/26 flange connection ensures compatibility with standard 2-bolt flange sets, making it a reliable choice for maintaining system pressure up to 145 PSI. This pump replaces several legacy models, ensuring your HVAC or plumbing system remains efficient and quiet.
Key Benefits- Stainless steel pump housing prevents corrosion in oxygen-rich open systems and domestic water lines.
- The wet rotor design allows for whisper-quiet operation, critical for residential installs.
- Integrated internal motor protection increases the lifespan of the unit under continuous duty cycles.
- Compact 6.5-inch port-to-port length allows for easy retrofitting in existing pipe configurations.
- Composite PES + 30% GF impeller provides high efficiency and temperature resistance.
Is the Grundfos UP15-29SF compatible with potable water?
Yes, the stainless steel construction makes this pump suitable for domestic hot water recirculation and other potable water applications where cast iron would rust.
What is the difference between the 'SF' and 'F' models?
The 'SF' specifically denotes a stainless steel flanged body, whereas 'F' typically refers to cast iron. Using the 59896771 prevents the corrosive effects of fresh water in open systems.
Can this pump be installed horizontally or vertically?
The pump must be installed with the motor shaft in a horizontal position, though the housing can be rotated for vertical or horizontal piping as long as the terminal box is not positioned below the motor.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
