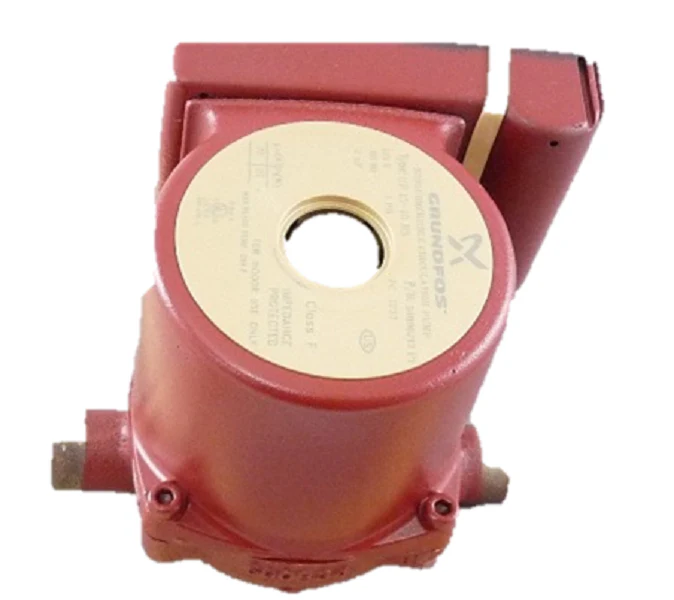

Grundfos 59896213 Pump
The Grundfos 59896213 is a single-speed, bronze circulator pump professionally engineered for open-loop systems, including domestic hot water recirculation and radiant heating. This UP15-10B5 model features a 1/25HP motor operating at 115V, delivering a maximum flow rate of 8.37 GPM and a maximum head of 6.23 feet. Designed with a corrosion-resistant bronze housing, it is ideal for potable water systems where cast iron would typically fail due to oxygen ingress. The canned rotor design ensures whisper-quiet operation by using the pumped liquid to lubricate the internal ceramic bearings, eliminating the need for a mechanical shaft seal. With 1/2-inch sweat connections, this pump integrates directly into standard copper piping without the need for additional flanges. The wet rotor technology and stainless steel rotor can provide long-term reliability in demanding hydronic heating and solar thermal applications. Measuring 5 inches port-to-port, it is a compact solution for space-constrained mechanical rooms requiring high-efficiency fluid transfer with a maximum operating pressure of 145 PSI.
Key Benefits- Corrosion Resistance: High-grade bronze housing prevents oxidation in open-loop and potable water applications.
- Maintenance-Free Design: Ceramic shaft and radial bearings are lubricated by the system fluid, removing the need for manual oiling.
- Internal Protection: Impedance protected motor eliminates the requirement for external overload protection.
- Ease of Installation: Integrated 1/2" sweat ports streamline the connection to domestic water lines.
- Quiet Operation: Advanced wet rotor engineering minimizes vibration and noise during continuous duty cycles.
Is the Grundfos 59896213 suitable for drinking water?
Yes, the bronze housing construction meets the requirements for potable water circulation and is a standard choice for domestic hot water loops.
Can this pump be installed horizontally?
The pump must be installed with the motor shaft in a horizontal position to ensure proper bearing lubrication, though the piping can run vertically or horizontally.
What is the maximum fluid temperature for the UP15-10B5?
This unit is rated to handle liquid temperatures ranging from 35.6°F to 230°F, making it compatible with high-temp boiler and solar applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $396.04
-65%$396.04
$138.61Grundfos 59896213 Pump
The Grundfos 59896213 is a single-speed, bronze circulator pump professionally engineered for open-loop systems, including domestic hot water recirculation and radiant heating. This UP15-10B5 model features a 1/25HP motor operating at 115V, delivering a maximum flow rate of 8.37 GPM and a maximum head of 6.23 feet. Designed with a corrosion-resistant bronze housing, it is ideal for potable water systems where cast iron would typically fail due to oxygen ingress. The canned rotor design ensures whisper-quiet operation by using the pumped liquid to lubricate the internal ceramic bearings, eliminating the need for a mechanical shaft seal. With 1/2-inch sweat connections, this pump integrates directly into standard copper piping without the need for additional flanges. The wet rotor technology and stainless steel rotor can provide long-term reliability in demanding hydronic heating and solar thermal applications. Measuring 5 inches port-to-port, it is a compact solution for space-constrained mechanical rooms requiring high-efficiency fluid transfer with a maximum operating pressure of 145 PSI.
Key Benefits- Corrosion Resistance: High-grade bronze housing prevents oxidation in open-loop and potable water applications.
- Maintenance-Free Design: Ceramic shaft and radial bearings are lubricated by the system fluid, removing the need for manual oiling.
- Internal Protection: Impedance protected motor eliminates the requirement for external overload protection.
- Ease of Installation: Integrated 1/2" sweat ports streamline the connection to domestic water lines.
- Quiet Operation: Advanced wet rotor engineering minimizes vibration and noise during continuous duty cycles.
Is the Grundfos 59896213 suitable for drinking water?
Yes, the bronze housing construction meets the requirements for potable water circulation and is a standard choice for domestic hot water loops.
Can this pump be installed horizontally?
The pump must be installed with the motor shaft in a horizontal position to ensure proper bearing lubrication, though the piping can run vertically or horizontally.
What is the maximum fluid temperature for the UP15-10B5?
This unit is rated to handle liquid temperatures ranging from 35.6°F to 230°F, making it compatible with high-temp boiler and solar applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
