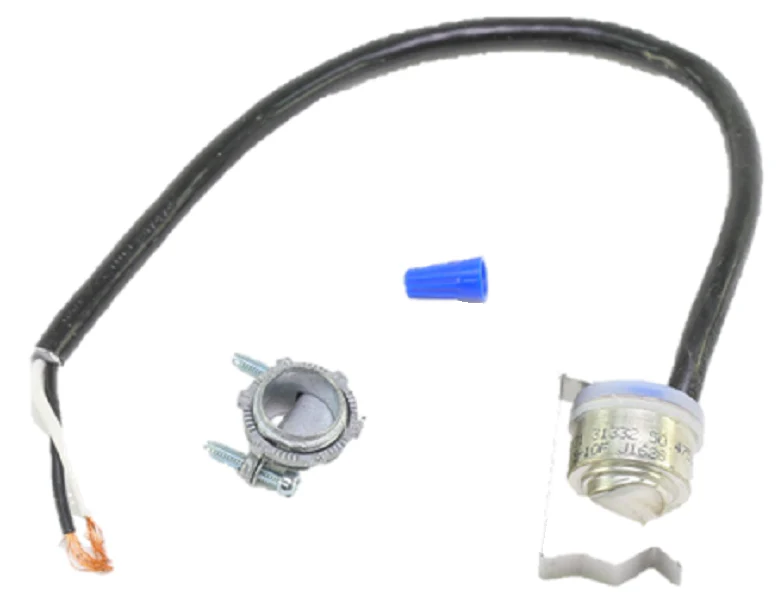

Grundfos 00595657 Aquastat
The Grundfos 00595657 Aquastat is a high-temp thermostatic control kit specifically engineered for UP Series circulator pumps. Designed for professional hydronic heating and domestic hot water applications, this 3/4" clip-on aquastat mounts directly onto 7/8" OD copper tubing to ensure precise thermal management. The bi-metallic, snap-acting disc provides responsive control, activating the pump when temperatures drop to 105°F and deactivating it once the 115°F threshold is reached. This differential prevents short-cycling and optimizes energy efficiency within the loop.
This Grundfos 595657 kit features an environmentally sealed enclosure and a 12-inch PVC jacketed cable for reliable performance in mechanical room conditions. With a contact rating of 10A at 120 VAC, it is a robust solution for contractors looking to maintain consistent hot water recirculation temperatures. The clip-on thermostat design allows for rapid field installation without the need for breaking into the piping system, making it an essential component for system retrofits and maintenance of hot water systems.
Key Benefits- Precision Temperature Control: Pre-set 105-115°F range eliminates manual calibration and ensures consistent system performance.
- Simplified Installation: 3/4" clip-on mount secures easily to 7/8" OD piping, reducing labor time for service calls.
- Durable Construction: Features a PVC jacketed cable and shielded wire to withstand standard HVAC environment stressors.
- Universal UP Series Support: Fully compatible with Grundfos UP Series 115V single-speed circulator pumps.
- Energy Optimized: Minimizes unnecessary pump operation, extending the lifespan of the circulator and reducing utility costs.
What pipe size is this aquastat compatible with?
The Grundfos 00595657 is designed for 3/4" ID copper tubing, which typically has a 7/8" OD. It can also be utilized on 1/2" steel pipe applications where the OD matches the clip tension.
Does this unit require a separate power source?
No, this aquastat control is wired in series with the circulator pump motor, acting as a mechanical switch based on the surface temperature of the pipe.
Can this be used for low-temperature applications?
This specific model is a high-temp version (105-115°F). For systems requiring a lower range, such as 85-105°F, refer to the Grundfos 595444 model.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Grundfos 00595657 Aquastat
The Grundfos 00595657 Aquastat is a high-temp thermostatic control kit specifically engineered for UP Series circulator pumps. Designed for professional hydronic heating and domestic hot water applications, this 3/4" clip-on aquastat mounts directly onto 7/8" OD copper tubing to ensure precise thermal management. The bi-metallic, snap-acting disc provides responsive control, activating the pump when temperatures drop to 105°F and deactivating it once the 115°F threshold is reached. This differential prevents short-cycling and optimizes energy efficiency within the loop.
This Grundfos 595657 kit features an environmentally sealed enclosure and a 12-inch PVC jacketed cable for reliable performance in mechanical room conditions. With a contact rating of 10A at 120 VAC, it is a robust solution for contractors looking to maintain consistent hot water recirculation temperatures. The clip-on thermostat design allows for rapid field installation without the need for breaking into the piping system, making it an essential component for system retrofits and maintenance of hot water systems.
Key Benefits- Precision Temperature Control: Pre-set 105-115°F range eliminates manual calibration and ensures consistent system performance.
- Simplified Installation: 3/4" clip-on mount secures easily to 7/8" OD piping, reducing labor time for service calls.
- Durable Construction: Features a PVC jacketed cable and shielded wire to withstand standard HVAC environment stressors.
- Universal UP Series Support: Fully compatible with Grundfos UP Series 115V single-speed circulator pumps.
- Energy Optimized: Minimizes unnecessary pump operation, extending the lifespan of the circulator and reducing utility costs.
What pipe size is this aquastat compatible with?
The Grundfos 00595657 is designed for 3/4" ID copper tubing, which typically has a 7/8" OD. It can also be utilized on 1/2" steel pipe applications where the OD matches the clip tension.
Does this unit require a separate power source?
No, this aquastat control is wired in series with the circulator pump motor, acting as a mechanical switch based on the surface temperature of the pipe.
Can this be used for low-temperature applications?
This specific model is a high-temp version (105-115°F). For systems requiring a lower range, such as 85-105°F, refer to the Grundfos 595444 model.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
