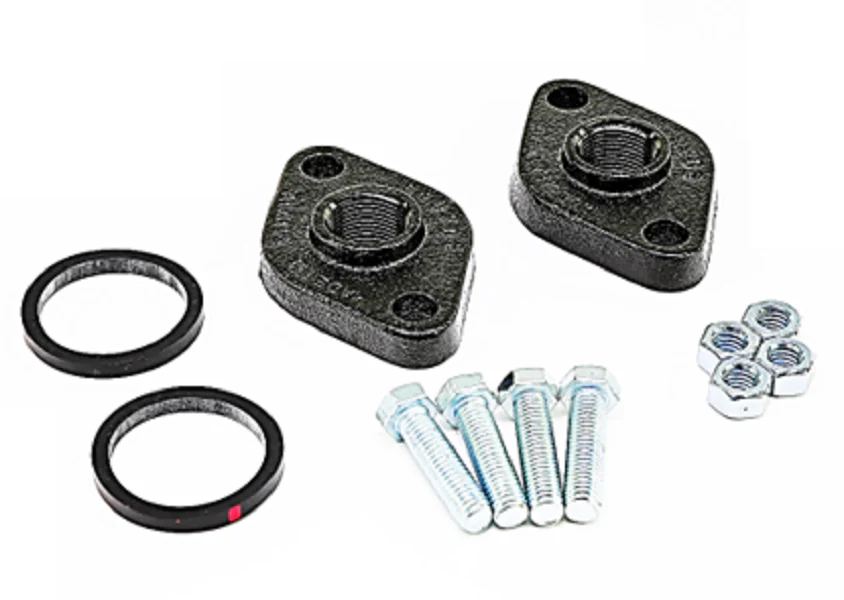

Grundfos 00519601 Flange Set
The Grundfos 00519601 Flange Set is a fundamental component for hydronic system installations, engineered specifically for Grundfos UP Series circulator pumps. This 3/4" cast iron flange set (GF 15/26) provides a robust, leak-resistant interface between the pump housing and 3/4 inch NPT piping. Constructed from high-density cast iron, these flanges are built to withstand the thermal stresses of residential and commercial heating systems. The threaded connection ensures a precise mechanical fit, facilitating efficient fluid handling and long-term system reliability. This genuine Grundfos replacement part is compatible with the ALPHA 15-58 F, UPS 15-58 FC, and various UP/UPS Series models. As a standard 2-bolt flange design, it simplifies the serviceability of the circulator, allowing for rapid isolation or replacement without re-piping the entire loop. Each kit is a comprehensive solution, including two flanges and the necessary pump flange gaskets and hardware required for a professional-grade installation.
Key Benefits- Cast iron durability: Provides superior structural integrity and corrosion resistance in closed-loop hydronic applications.
- Universal UP Series compatibility: Fits the widely used GF 15/26 mounting standard for Grundfos circulator pumps.
- Complete hardware kit: Includes two flanges, two gaskets, and four bolts/nuts to ensure a secure, airtight seal.
- Precision NPT threading: 3/4" FNPT connections offer seamless integration with standard iron or copper piping headers.
- Ease of maintenance: Allows for quick removal of the pump motor for cleaning or service without disturbing the main piping.
Which Grundfos pump models are compatible with this flange set?
This set is designed for the GF 15/26 mounting pattern, making it a perfect fit for the UP Series, UPS Series, and ALPHA Series, specifically models like the 15-58, 26-96, and 26-99.
Does this kit include everything needed for mounting?
Yes, the 00519601 kit is a pair and comes with 2 flanges, 2 circulator pump gaskets, and the 4 sets of nuts and bolts required to secure the pump to the flanges.
Can I use these flanges with other pump brands?
While engineered for Grundfos, these cast iron flanges adhere to standard 2-bolt dimensions (3-5/32" center-to-center) and are often interchangeable with other major brands using 3/4" NPT connections.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
