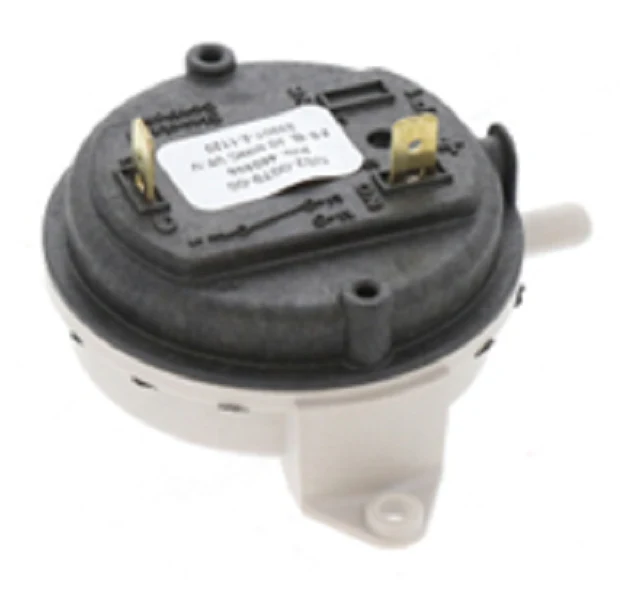

Greenheck 460509 Pressure Switch
The Greenheck 460509 Pressure Switch is an essential safety and operational component designed for induced draft combustion systems and industrial ventilation. As an OEM Greenheck replacement part, this differential air flow switch is calibrated to a fixed set point of .2" w.c., ensuring that your inducer motor is moving the precise volume of air required for safe operation. Built for durability in demanding mechanical rooms, the 460509 features a sensitive internal diaphragm that responds to negative pressure thresholds, preventing the heating cycle from proceeding if a static pressure drop or venting obstruction is detected.
For technicians troubleshooting a furnace pressure switch or air handling unit, the 460509 offers reliable SPST NO (Normally Open) contact logic that closes once the .2" water column suction is achieved. Its rugged housing and standard mounting footprint make it a direct-fit solution for various Greenheck centrifugal blowers and exhaust fans. Integrating this low-pressure sensing switch into your maintenance routine helps prevent costly system lockouts caused by diaphragm stiffening or port clogs, maintaining the tight tolerances required for high-efficiency HVACR equipment.
Key Benefits of the Greenheck 460509
- Precision Calibration: Factory-set at .2" w.c. to meet strict OEM application requirements for airflow verification.
- Industrial-Grade Reliability: Features a robust casing designed to withstand the thermal and vibration stresses of air handler unit environments.
- Universal Compatibility: Serves as a standard Greenheck 460509 RSS-495-079 replacement for a wide range of ventilation models.
- Safety Interlock: Actively monitors for blocked flues or failing inducer motors, protecting critical system components.
Common Questions About the .2" w.c. Pressure Switch
What causes a pressure switch to stay open?
Common causes include a failing inducer motor, cracked pressure switch tubing, or a clogged collection chamber port. If the manometer reading at the port is below .2" w.c., the switch will not close.
How do I test the 460509 with a multimeter?
With the inducer running, professionals should check for 24V across the terminals. If 24V is present at the input but not the output, the switch is open. Alternatively, check for continuity (0 ohms) only when the inducer reaches full speed.
Can I use a switch with a different w.c. rating?
No. In technical HVACR applications, the set point must match the manufacturer's data plate exactly to ensure the sequence of operation and combustion safety are not compromised.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
