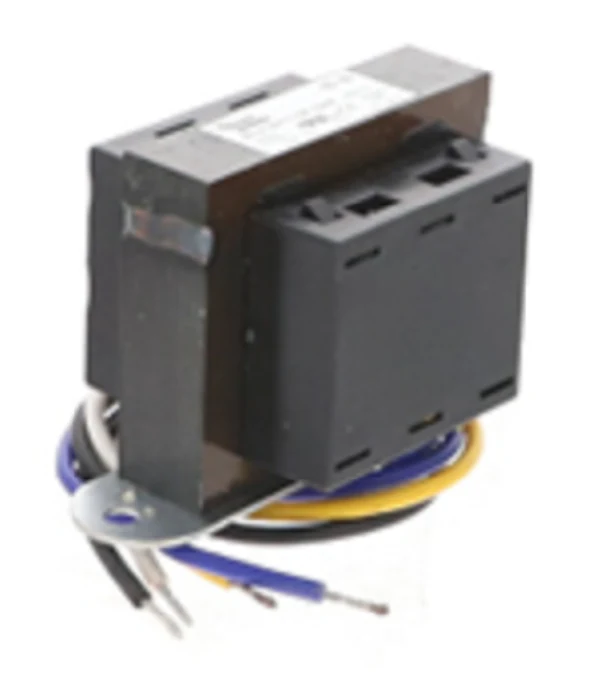

Greenheck 385214 Transformer
The Greenheck 385214 Transformer is a field-proven solution for converting 120V primary voltage to a stable 24V secondary output. This 20VA class 2 transformer is commonly integrated into Greenheck ventilation systems and commercial HVAC control circuits where reliable power for 24V actuators, relays, and controllers is required. Engineered for sustained performance, the 385214 provides the necessary isolation and step-down capacity to prevent control circuit interference. As a veteran technician knows, the Greenheck 20VA transformer is built for seamless retrofitting or replacement in existing electrical housings. Its compact footprint ensures it fits within standard junction boxes or control panels, maintaining the integrity of the original HVAC low-voltage wiring. When replacing a failed unit, verifying the 20VA load capacity against your total actuator draw is essential for preventing premature failure of the secondary windings. This part is a direct factory replacement, ensuring consistent electrical characteristics for high-demand industrial and commercial environments.
Key Benefits- Efficient Voltage Step-Down: Converts 120V AC to 24V AC with high precision for sensitive electronic components.
- 20VA Power Rating: Optimized for powering control circuits, thermostats, and motorized dampers without excessive heat buildup.
- Rugged Build Quality: Constructed to withstand the thermal demands found in commercial rooftop units and mechanical rooms.
- Compact Integration: Designed for standard mounting, making it a reliable OEM replacement transformer for Greenheck equipment.
What is the maximum load for this 20VA transformer?
This transformer is rated for 20VA. To ensure long-term reliability, calculate the total VA draw of your connected loads (such as actuators or relays) and ensure they do not exceed 80-90% of this capacity.
Can I use this for 208V or 240V primary applications?
No, the Greenheck 385214 is specifically designed for 120V primary input only. Attempting to use higher voltages will damage the unit and the connected control hardware.
Will this replace generic 24V control transformers?
While it provides standard 24V secondary output, it is specifically configured for Greenheck systems. Always check mounting bolt patterns and lead lengths before installation in non-Greenheck equipment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
