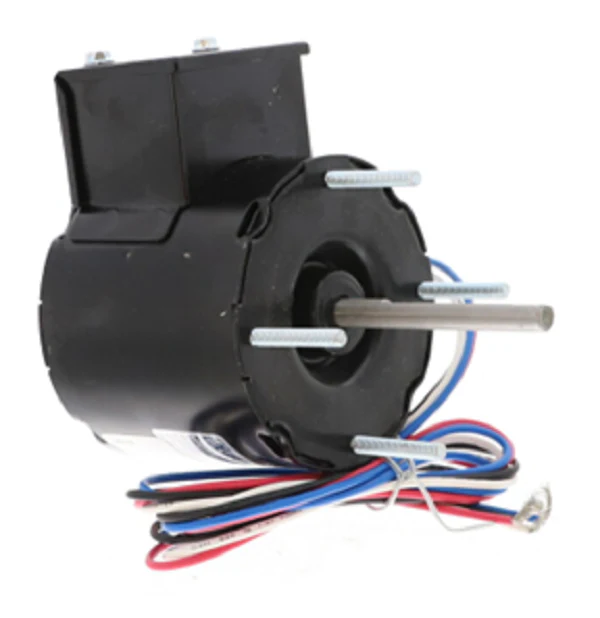

Greenheck 329868 Motor
The Greenheck 329868 Motor is a high-performance 115V 1/30HP replacement motor engineered for precision airflow control in commercial ventilation systems. Operating at 1150 RPM, this 3-speed HVAC motor features a Counter-Clockwise Shaft End (CCWSE) rotation, making it a direct match for specific blower assemblies and exhaust fans. As a genuine Greenheck OEM part, it ensures seamless compatibility with your existing fan housing, eliminating the field modifications often required with universal alternatives. Designed for single-phase 60Hz operation, this unit utilizes an extended thru-bolt mount for secure physical integration. The multi-speed capability allows for fine-tuned air balancing, while the 0.53 Full Load Amp draw ensures efficient power consumption during continuous duty. For contractors managing industrial fan motor replacement, this component provides the exact electrical characteristics and physical dimensions, including a 3.06 lb weight and shaded pole design, necessary to restore system performance to factory standards.
Key Benefits- Precise Multi-Speed Control: Features three speed taps to accommodate varying ventilation requirements and balancing needs.
- True OEM Compatibility: Verified as an official replacement for 301462, ensuring the mechanical alignment and voltage match required for Greenheck equipment.
- Durable Construction: Built with Class B insulation and an automatic thermal overload protector to maintain integrity in demanding environments.
- Simplified Installation: The CCWSE rotation and standard thru-bolt mounting allow for rapid field replacement without reconfiguring the drive assembly.
Is the Greenheck 329868 a direct replacement for other models?
Yes, this motor is specifically listed as the functional 115V replacement for the Greenheck 301462 model, maintaining the same 1/30 HP and 1150 RPM profile.
Can I use a speed controller with this motor?
This is a dedicated 3-speed motor. Speed adjustments should be made via the designated leads provided on the motor wiring harness rather than external voltage-reduction controllers.
What is the significance of the CCWSE rotation?
CCWSE (Counter-Clockwise Shaft End) indicates the rotation direction when viewing the motor from the shaft end. It is critical to match this to your fan's impeller design to maintain correct static pressure and airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
