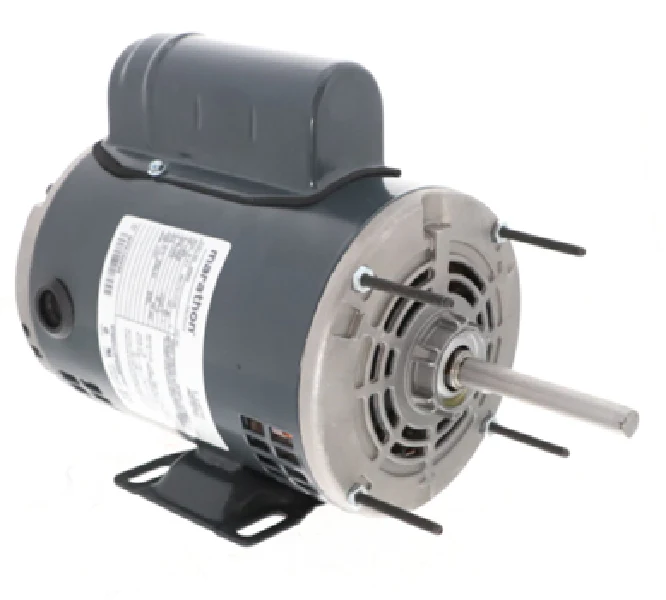

Greenheck 305948 Motor
The Greenheck 305948 Motor is a high-performance NEMA 48 frame power unit engineered for demanding industrial ventilation and air handling applications. This single-phase induction motor delivers a consistent 3/4 HP output at a synchronous speed of 1725 RPM, making it a reliable standard for belt-driven blowers and centrifugal fans. Designed with a dual-voltage configuration, it operates seamlessly on both 115V and 230V electrical systems, providing versatile field integration for commercial HVACR contractors. The Open Drip Proof (ODP) enclosure ensures maximum cooling efficiency through optimized airflow while the rolled steel housing and rigid base mount offer high structural integrity for stationary installations. Equipped with automatic thermal protection and Class B insulation, this motor is built to withstand an ambient operating temperature of up to 40°C, ensuring stable performance during continuous duty cycles.
Key Benefits- Dual Voltage Compatibility: Supports 115/230V 60Hz systems for flexible wiring in various commercial environments.
- Industrial-Grade Construction: Features a rugged NEMA 48 frame with a durable 0.5-inch diameter shaft for precise pulley alignment.
- Thermal Overload Protection: Integrated automatic reset thermal protector prevents winding failure due to overheating or excessive amp draw.
- High Torque Performance: 4-pole design provides the necessary starting torque for heavy-duty fan blades and blower wheels.
What is the frame size and mounting type for this motor?
The Greenheck 305948 utilizes a standard 48 frame with a rigid base (foot mount), ensuring a secure and vibration-resistant installation in most belt-drive housings.
Can this motor replace a 1800 RPM unit?
Yes, 1725 RPM is the actual full-load speed for a motor with a synchronous speed of 1800 RPM; these are technically compatible for the same 4-pole applications.
Is this motor suitable for outdoor use?
As an Open Drip Proof (ODP) motor, it is designed for indoor or protected environments where it is shielded from direct rain and splashing water.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
