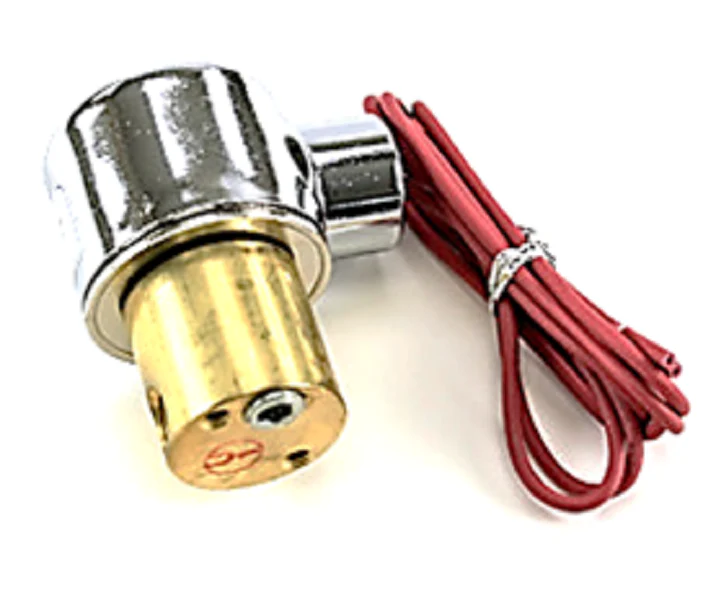

GC Valves S311AF02V8AC9L Valve
The GC Valves S311AF02V8AC9L is a high-performance 3-way normally closed solenoid valve engineered for precision fluid control in commercial HVACR and industrial automation systems. This unit features a 1/8" NPT port size and a robust brass body construction, providing excellent structural integrity for high-cycle applications. Equipped with Viton (FKM) seals, the valve ensures superior chemical resistance and thermal stability when handling air, inert gases, or water. The integrated exhaust drain port allows for efficient system depressurization, making it ideal for controlling single-acting cylinders or pilot-operated valves. Operating on a 120V/60Hz AC coil, this solenoid provides reliable actuation in demanding environments. Technicians favor the S3-Series for its direct-acting design, which eliminates the need for a minimum operating pressure differential, ensuring consistent performance from 0 PSI up to the maximum rated MOPD. This versatile component is a standard solution for solenoid valve manifold assemblies and pneumatic control circuits.
Key Benefits- Viton Diaphragm: Provides high temperature and chemical compatibility for diverse media.
- Direct-Acting Operation: Functions reliably without requiring system pressure to shift the valve.
- Internal Drain Port: Simplifies pneumatic circuit design by venting downstream pressure.
- Compact Brass Footprint: Durable 1/8" NPT connection fits into tight mechanical skids and enclosures.
- AC Powered Coil: Standard 120VAC 60Hz electrical configuration for rapid integration into existing control panels.
What is the flow coefficient (Cv) for this model?
The GC Valves S311 series typically offers a Cv tailored for precise 1/8" porting, ensuring adequate flow for pilot signals and small-bore cylinder actuation.
Can this valve be field-serviced?
Yes, the S3 series is designed for maintenance, allowing technicians to inspect or replace the coil and internal seals without removing the brass body from the piping.
Is this valve suitable for vacuum service?
While primarily designed for positive pressure systems, the Viton seals and direct-acting nature make it adaptable for specific vacuum applications; verify your specific Hg rating before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
