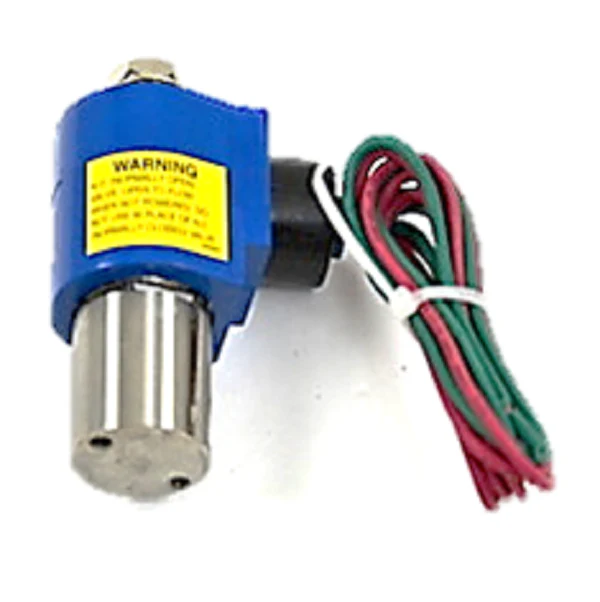

GC Valves S302GF02V2AC9 Solenoid Valve
The GC Valves S302GF02V2AC9 is a high-performance normally open solenoid valve engineered for precision fluid control in demanding HVACR and industrial environments. Featuring a rugged 303 stainless steel body and a 3/32" orifice, this direct-acting valve is designed to handle corrosive media and high-pressure differentials where brass components might fail. The integration of Viton (FKM) seal material ensures superior chemical resistance and remains stable under high thermal loads, making it ideal for systems requiring a leak-free 1/8" NPT connection. Powered by a 120Vac Class F coil, the S302GF02V2AC9 is rated for continuous duty cycles, providing reliable performance in automated process lines. Technicians prefer this model for its simplified two-way operation and its ability to maintain a fail-safe open position during power loss, ensuring system safety and consistent flow rates in critical solenoid valve applications.
Key Technical Benefits- 303 Stainless Steel Construction: Provides maximum corrosion resistance for longevity in harsh environments.
- Viton (FKM) Seals: Delivers exceptional compatibility with oils, chemicals, and high-temperature fluids.
- Normally Open Operation: Simplifies fail-safe system design by allowing full flow when de-energized.
- Class F Coil Insulation: Rated for high-temperature environments, preventing premature coil burnout during continuous operation.
- Direct Acting Design: Ensures reliable switching even in low-pressure or gravity-fed systems.
What is the maximum operating pressure for the GC Valves S302GF02V2AC9?
This valve is typically rated for differential pressures up to 150 PSI depending on the media; however, always verify specific system requirements against the 3/32" orifice flow coefficient.
Can this solenoid valve be mounted in any orientation?
For optimal service life and to prevent sediment buildup in the armature tube, it is recommended to mount the valve with the solenoid vertical and upright.
Is the coil compatible with standard 120V control circuits?
Yes, the 120Vac Class F coil is designed for standard North American power supplies and features standard lead wires for integration into existing control panels.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
