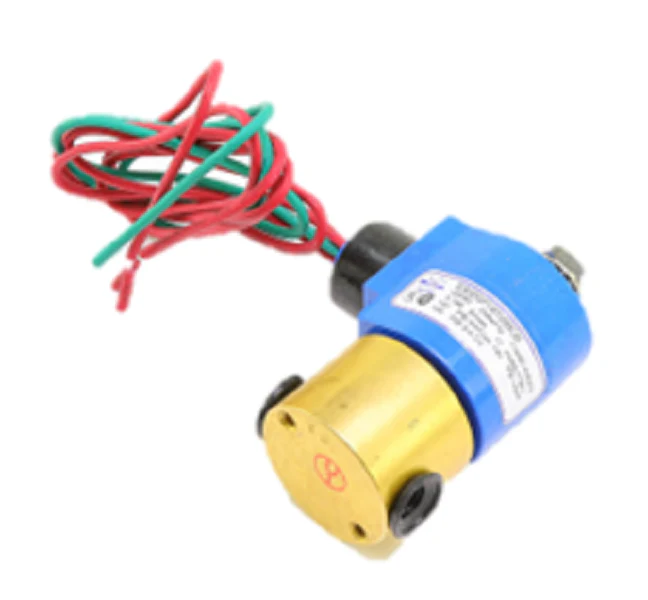

GC Valves S302GF02N8BD5 Solenoid Valve
The GC Valves S302GF02N8BD5 is a high-performance 2-way normally open solenoid valve engineered for demanding fluid and gas control in HVACR and industrial systems. Built with a rugged brass body and featuring a 1/4" NPT pipe size, this direct-acting valve is designed for reliability in low-pressure applications, supporting a maximum operating pressure differential of 100 PSI for air, water, and light oils. The 1/8" orifice provides a balanced flow rate, while the integrated Nitrile (Buna-N) seal material ensures excellent chemical resistance to hydrocarbons and a maximum fluid temperature rating of 180°F.
For contractors, ease of integration is key. This unit utilizes a 120Vac coil with Class F insulation, rated for continuous duty and housed in a NEMA 4X enclosure to withstand washdown and corrosive environments. As a normally open valve, the S302GF02N8BD5 remains in the open position until electrically energized, making it an essential component for safety-relief or air-venting circuits. Whether you are performing a solenoid coil replacement or a new system installation, this GC Valves S30 series component provides the precise fluid control required for professional HVACR standards.
Key Benefits- Durable Brass Construction: The corrosion-resistant brass body ensures a long service life in standard plumbing and HVAC applications.
- High-Temperature Resilience: Equipped with a Class F coil and Nitrile seals, the valve handles ambient temperatures up to 125°F and media up to 180°F.
- Direct-Acting Reliability: Requires zero differential pressure to operate, making it ideal for gravity-fed systems or low-pressure vacuum lines.
- Environmental Protection: The NEMA 4X housing provides a watertight and dust-tight seal for indoor or outdoor mounting.
What is the maximum pressure for the GC Valves S302GF02N8BD5?
This valve is rated for a maximum operating pressure differential (MOPD) of 100 PSI when used with air, inert gases, or water.
Can this solenoid valve be mounted in any orientation?
While GC Valves solenoid valves are multi-poised and can technically be mounted in any position, it is best practice to install the valve with the solenoid operator in a vertical, upright position to prevent sediment buildup in the plunger tube.
Is the S302GF02N8BD5 compatible with aggressive chemicals?
The Nitrile (Buna-N) seals are specifically chosen for compatibility with neutral gases, water, and hydraulic oils. For highly aggressive media or high-pressure steam, consult the technical data sheet for Viton or PTFE alternatives.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
