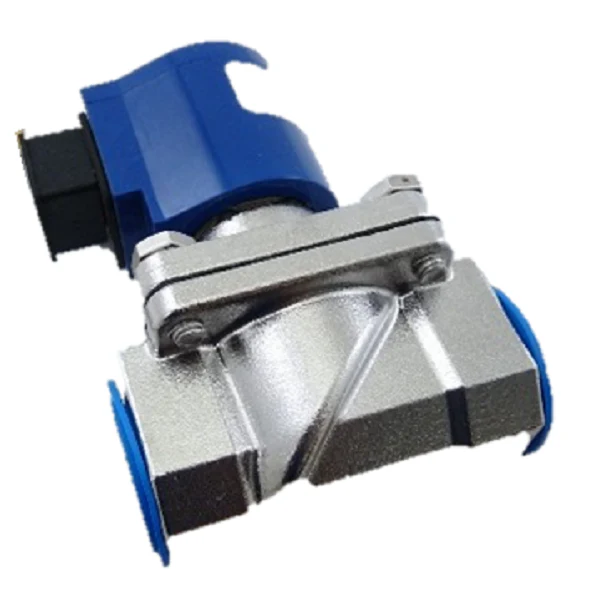

GC Valves S211YF16L7EG5 Solenoid Valve
The GC Valves S211YF16L7EG5 is a high-performance 2-way normally closed solenoid valve engineered for precision fluid control in demanding industrial and HVACR environments. Featuring a rugged 316 stainless steel body, this valve is purpose-built to handle aggressive media, steam, and light oils where standard brass components fail. The 3/4" NPT connection and full 3/4" orifice ensure high flow capacity, supported by a piloted diaphragm design that provides reliable shutoff even in low-pressure systems. Operating on a 24Vdc power supply, the unit utilizes a Class F coil rated for high-temperature stability and is equipped with a DIN connector for secure, moisture-resistant electrical termination. The Viton (FKM) seal material offers superior chemical compatibility and thermal resistance, making it an ideal choice for chillers, boilers, and cooling towers. Contractors select the S211YF16L7EG5 for its corrosion-resistant construction and consistent performance in process control and chemical processing applications.
Key Benefits:
- Maximum Corrosion Resistance: The 316 stainless steel construction prevents pitting and degradation when exposed to harsh chemicals or aggressive water conditions.
- Superior Thermal Range: Equipped with Viton seals and a Class F coil, this normally closed solenoid valve maintains integrity in fluid temperatures up to 230°F.
- High Flow Efficiency: A generous 3/4 inch orifice provides a high Cv rating, reducing pressure drop across the valve in industrial automation setups.
- Versatile Media Handling: Validated for use with air, neutral gases, water, and aggressive media, streamlining inventory for multi-service facilities.
- Reliable 24Vdc Operation: Optimized for modern HVAC control systems and PLC-driven process control loops.
Common Questions:
What media is compatible with the S211YF16L7EG5?
Thanks to the 316 stainless steel body and Viton (FKM) seals, this valve is compatible with water, steam, light oils, and many aggressive chemicals. It is frequently used in water treatment and chemical processing where standard alloys would corrode.
Can this valve operate at zero pressure?
This is a piloted diaphragm valve, which typically requires a minimum differential pressure (usually around 5 PSI) to open fully and maintain stable flow. For zero-differential applications, a direct-acting model should be considered.
Is the coil protected against moisture?
Yes, the Class F coil features a DIN connection, which provides an IP65-rated seal when used with a compatible cable plug, protecting the 24Vdc internals from spray and humidity in mechanical rooms.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
