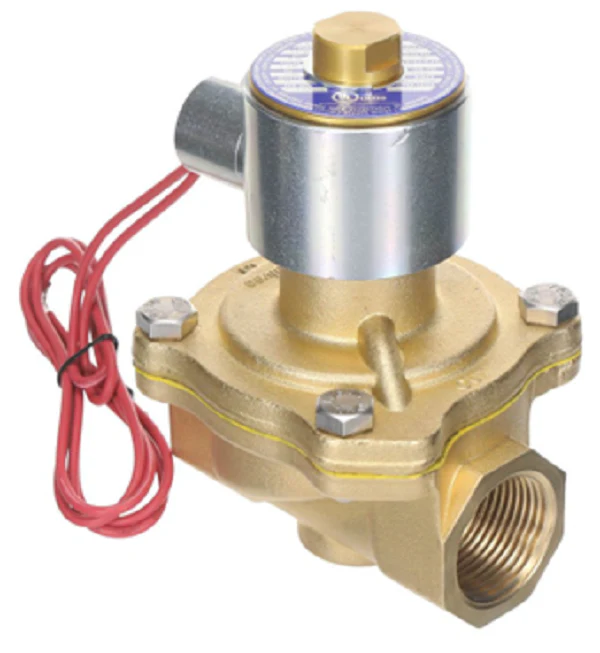

GC Valves S211XH02V5FG9 Valve
The GC Valves S211XH02V5FG9 Solenoid Valve is a technical-grade 1-inch normally closed (N/C) flow control solution engineered for safe operation in hazardous industrial environments. This explosion-proof (X-PROOF) 2-way piloted diaphragm valve features a rugged brass body and 1-inch NPT connections, making it a direct field replacement for the S211XF02V5FG9. It is designed to manage the flow of water, air, neutral gases, light oils, and slightly aggressive media in classified locations where safety is paramount.
Equipped with a high-performance 120V AC coil and a Viton seat, this valve provides exceptional chemical resistance and high-temperature tolerance up to 230°F (110°C). The fail-closed configuration ensures a secure shutoff when de-energized, while the NEMA 7/9 rated housing ensures compliance with strict industrial safety standards for gaseous or explosive atmospheres. For technicians managing chemical processing or energy systems, the S211XH02V5FG9 offers the durability and reliable pressure differentials required for high-cycle industrial applications.
Key Technical Benefits
- Explosion-Proof Protection: NEMA 7/9 rated housing designed for hazardous locations and classified industrial environments.
- High Chemical Compatibility: Viton (FKM) seat material provides superior resistance to petroleum products, acids, and aggressive media.
- Standard 120VAC Operation: Integrated 120V/60Hz coil allows for easy integration into existing industrial control circuits.
- Fail-Safe Security: Normally closed (N/C) operation ensures the valve remains tight-sealed when power is lost.
- Heavy-Duty Construction: Built with a corrosion-resistant brass body and stainless steel pilot orifices for long-term service life.
Common Questions
What is the difference between the S211XH02V5FG9 and the S211XF02V5FG9?
The S211XH02V5FG9 serves as the direct cross-reference and functional replacement for the S211XF02V5FG9, maintaining the same 1-inch NPT sizing, explosion-proof rating, and Viton sealing properties.
Can this valve be used for steam applications?
While the Viton seat offers excellent temperature resistance, it is primarily recommended for air, water, and light oils. For high-pressure steam, verify that the media temperature does not exceed the 230°F limit of the internal components.
Is this valve suitable for fuel oil or petroleum?
Yes, the Viton seat and brass construction are specifically chosen for their excellent compatibility with light oils and petroleum-based fluids, preventing seal degradation common with nitrile alternatives.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $388.37
-65%$388.37
$135.93GC Valves S211XH02V5FG9 Valve
