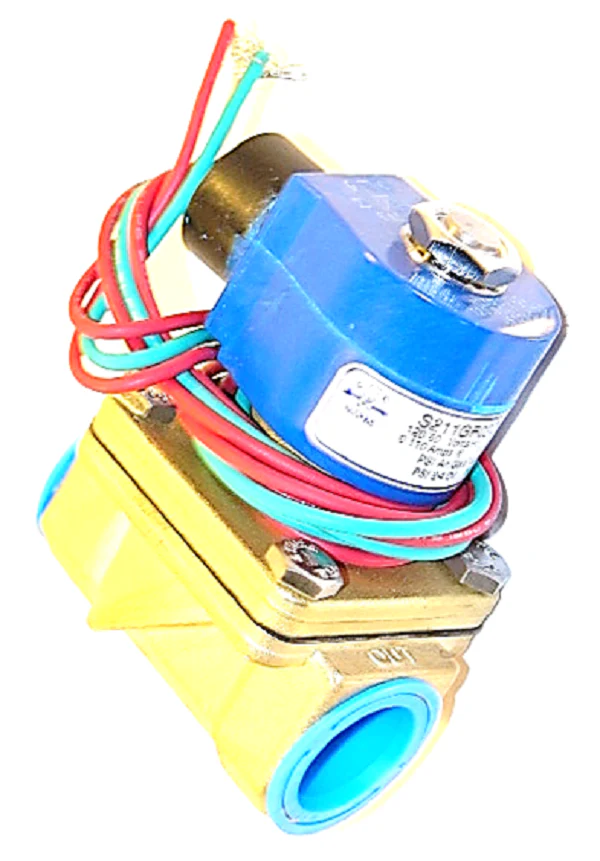

GC Valves S211GF02C5EG5 Solenoid Valve
The GC Valves S211GF02C5EG5 is a high-performance 2-way normally closed solenoid valve engineered for demanding HVACR and industrial fluid control applications. Featuring a rugged brass body and a 3/4" NPT connection, this pilot-operated valve utilizes a 3/4" orifice to maintain high flow rates with minimal pressure drop. The EPR (Ethylene Propylene) seal material ensures chemical compatibility with hot water, steam, and low-pressure steam, making it an ideal choice for boiler feed systems or process water control. Driven by a 120Vac Class F coil, the S211 series is rated for continuous duty in high-ambient environments. Contractors rely on this S211 solenoid series for its reliable zero-differential or high-pressure operation, depending on system configuration. Its diaphragm-style design provides consistent fluid automation and tight shut-off, ensuring system integrity under fluctuating thermal loads.
Key Technical Benefits- Durable Construction: The heavy-duty brass valve body provides corrosion resistance and structural integrity for long-term field use.
- Thermal Resilience: Equipped with a Class F coil and EPR seals, the unit is optimized for high-temperature media.
- High Flow Efficiency: The large 3/4 inch orifice maximizes Cv values for efficient fluid transfer.
- Versatile 120V Control: Standard 120V solenoid coil allows for easy integration into existing building automation and HVAC control circuits.
- Reliable Sealing: Normally closed operation ensures a failsafe shut-off position during power loss.
What media is the EPR seal compatible with?
The EPR seal in the GC Valves S211GF02C5EG5 is specifically designed for hot water, steam, and certain alkaline solutions. It is not recommended for petroleum-based fluids or oils.
Can this valve be mounted in any orientation?
For optimal service life and to prevent sediment buildup in the pilot orifice, it is recommended to install the valve with the 120Vac coil in the upright vertical position.
Is this valve suitable for high-pressure steam?
The S211 series is excellent for low-pressure steam; however, engineers should verify the specific MOPD (Maximum Operating Pressure Differential) against their system’s peak pressure to ensure proper diaphragm actuation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
