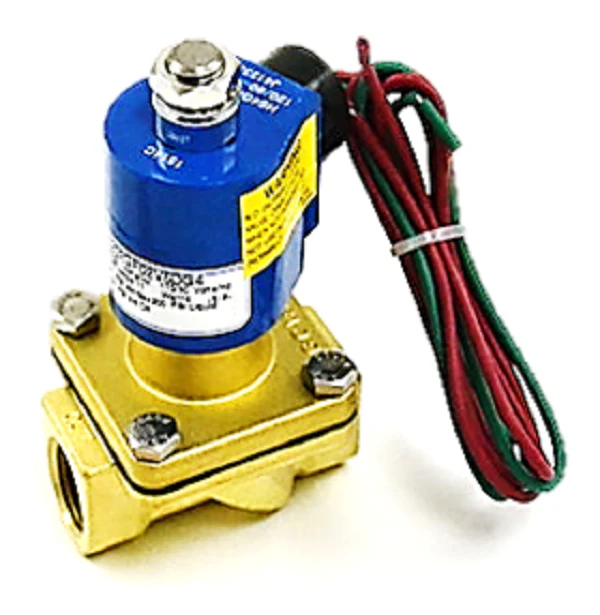

GC Valves S202GF02V5DG4 Solenoid Valve
The GC Valves S202GF02V5DG4 Solenoid Valve is a normally open 2-way, piloted diaphragm valve engineered for high-performance fluid control in demanding industrial and HVACR environments. Built with a heavy-duty brass body and featuring a 1/2" NPT connection, this unit is optimized for systems requiring reliable zero-differential operation. The 5/8" orifice supports a high flow coefficient (Cv), ensuring minimal pressure drop across the line. This model is equipped with a 120Vac Class F coil, providing superior thermal resistance for continuous-duty cycles. The integration of Viton seal material (FKM) ensures broad chemical compatibility and resilience against high temperatures, making it a preferred choice for air, water, and light oil applications. For technicians managing complex piping layouts, the GC Valves S20 series provides a multi-poised design, allowing for installation in any orientation without compromising the integrity of the solenoid valve performance or sealing capacity.
Key Benefits for the Contractor:
- Viton Diaphragm Seals: Delivers exceptional resistance to heat and aggressive media compared to standard nitrile options.
- Zero Differential Operation: The piloted diaphragm design allows the valve to function reliably even at extremely low pressure differentials.
- High-Temperature Coil: The Class F coil is rated for higher ambient temperatures, reducing the risk of burnout in tight mechanical rooms.
- Interchangeable Parts: Standardized S20 series components simplify field maintenance and rebuilds using common repair kits.
- Versatile Media Handling: Suitable for a wide range of fluids, ensuring this brass solenoid valve fits multiple application profiles.
Common Questions:
What is the maximum pressure rating for this 120V solenoid valve?
This model is typically rated for a maximum operating pressure differential (MOPD) of up to 200 PSI, depending on the specific media being controlled.
Can the S202GF02V5DG4 be mounted vertically or horizontally?
Yes, this normally open valve is designed to be multi-poised, meaning it can be mounted in any position; however, mounting with the coil upright is recommended to prevent sediment accumulation in the plunger tube.
Does this valve come with the solenoid coil included?
Yes, the S202GF02V5DG4 includes the 120Vac Class F coil with an encapsulated waterproof conduit housing (NEMA 4X) as standard equipment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
