GC Valves S202GF02N5DG4 Solenoid Valve

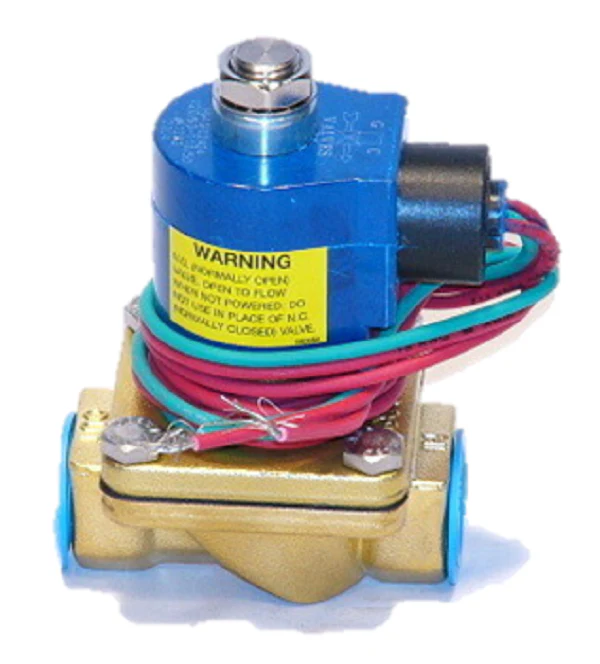

The GC Valves S202GF02N5DG4 Solenoid Valve is a professional-grade, 2-way normally open solenoid valve designed for reliable flow control in high-demand HVACR and industrial fluid systems. Built with a heavy-duty brass body and a 5/8" orifice, this 1/2" NPT solenoid valve utilizes a pilot-operated diaphragm to achieve a zero-differential pressure rating, making it ideal for low-pressure applications. The 120Vac coil is Class F rated for superior thermal resistance, ensuring consistent performance in ambient temperatures ranging from 32°F to 125°F. Equipped with a nitrile seal material (Buna-N), this pilot operated solenoid valve provides excellent compatibility with air, inert gases, and water. Contractors value the S20 series for its NEMA 4X conduit housing, which offers robust environmental protection for internal electrical components. Whether you are managing water lines or pneumatic cycles, the GC Valves S202GF02N5DG4 delivers the durability required for long-term field service.
Key Benefits for Technicians:- Zero Differential Operation: Facilitates reliable opening and closing even in systems with minimal pressure drops.
- Normally Open (NO) Configuration: Ensures fail-safe flow during power loss, a critical requirement for specific cooling or safety loops.
- Rugged Brass Construction: Provides superior corrosion resistance and structural integrity for high-cycle industrial environments.
- High Flow Capacity: The 5/8" orifice allows for a high Cv value, reducing turbulence and pressure loss across the valve.
- Field-Serviceable Design: Standard 1/2" NPT connections and 24-inch leads simplify integration into existing 120V control circuits.
What media is this valve compatible with?
The nitrile (Buna-N) seals are optimized for air, water, and light oils. For steam or high-temperature chemical applications, consult the factory for Viton or EPDM alternatives.
Can this valve be mounted in any orientation?
Yes, the S20 series is designed to function in any mounting position, though keeping the coil upright is often preferred to prevent sediment accumulation in the core tube.
Is this valve suitable for outdoor use?
The standard G-housing is a NEMA 4/4X rated encapsulated waterproof conduit, making it suitable for washdown environments and outdoor installations when properly wired.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
