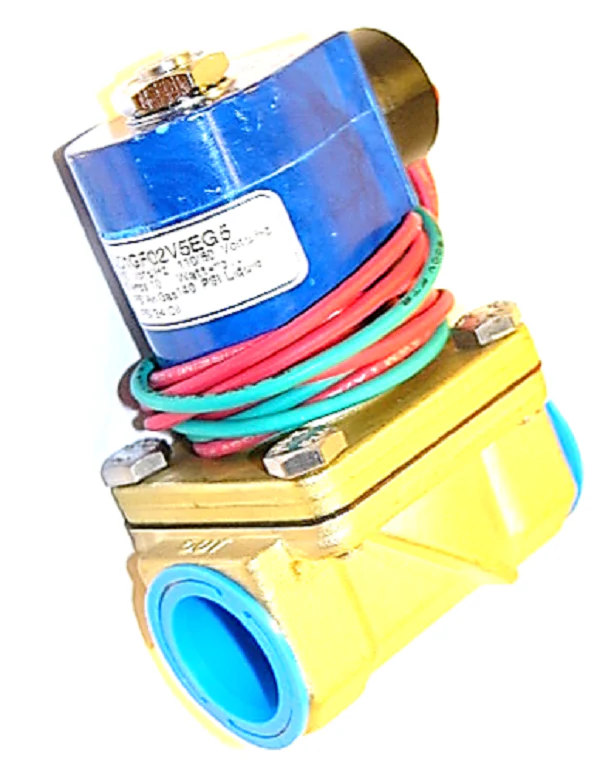

GC Valves S201GF02V5EG5 Solenoid Valve
The GC Valves S201GF02V5EG5 is a professional-grade, 2-way normally closed solenoid valve designed for reliable fluid control in demanding HVACR and industrial piping systems. Featuring a rugged brass body and 3/4" NPT connections, this piloted diaphragm valve is engineered for high-flow applications requiring the chemical resistance of Viton seal material (FKM), making it ideal for air, water, and light oils. Driven by a 120Vac coil (Class F), the S20 series utilizes a zero-differential design, allowing the valve to function effectively even in low-pressure or gravity-fed scenarios where a minimum pressure drop is not maintained.
For contractors, the GC Valves S201GF02V5EG5 solenoid offers a 3/4" orifice that delivers a high Cv rating, ensuring minimal flow restriction. The encapsulated NEMA 4X conduit housing provides superior protection against environmental moisture and dust, while the 120V solenoid valve configuration ensures seamless integration with standard building automation and control circuits. Whether you are managing aggressive media or standard water lines, this valve's 3/4 inch brass solenoid construction and piloted operation provide the positive shut-off and durability required for long-term field performance.
- Zero-Differential Operation: Functions reliably without requiring line pressure to open, perfect for tank drains and vacuum systems.
- Viton Diaphragm: High-grade FKM seals offer excellent thermal stability and resistance to various chemicals and oils.
- Industrial Build: Heavy-duty brass body paired with a moisture-resistant NEMA 4X housing for harsh mechanical environments.
- Versatile Compatibility: Standard 3/4" NPT ports and 120V AC electrical rating match common commercial plumbing and HVAC specs.
Common Questions
Does this valve require a minimum pressure to operate?
No, the S20 series is a zero-differential piloted diaphragm valve, meaning it can open and close even at 0 PSI, unlike standard pilot-operated valves that require a pressure drop.
What media can be used with the Viton seals?
Viton (FKM) is highly compatible with air, water, and many oils or chemicals. However, it is not recommended for steam; for steam applications, an EPR seal and Class H coil are typically required.
Can this valve be mounted in any orientation?
While these valves are multi-poised, it is best practice for veteran technicians to mount them with the solenoid in a vertical upright position to prevent sediment build-up in the plunger tube.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
