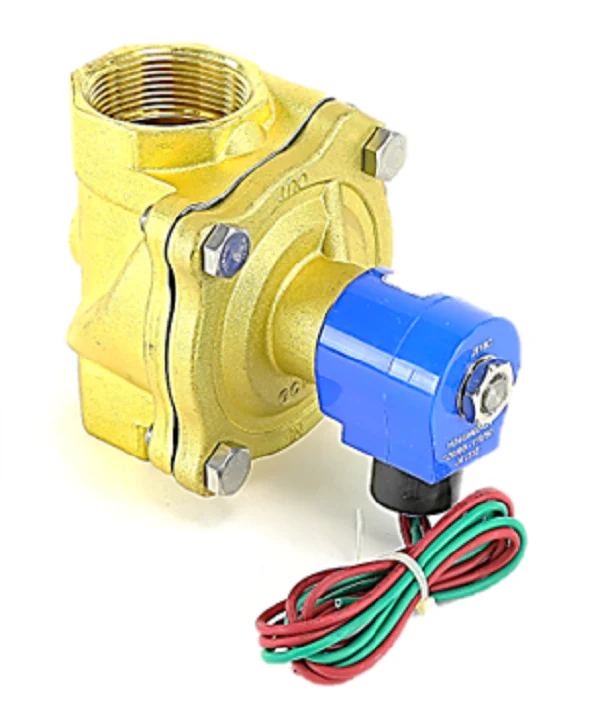

GC Valves S201GF02N5HJ2 Solenoid Valve
The GC Valves S201GF02N5HJ2 Solenoid Valve is a heavy-duty, 2-way normally closed solenoid valve engineered for high-flow HVACR and industrial applications. Built with a rugged brass body and a 1-1/2" NPT connection, this piloted diaphragm valve is designed for zero differential operation, making it ideal for systems where low-pressure performance is critical. It features a large 1-1/4" orifice and a Nitrile (Buna-N) seal, providing excellent compatibility with air, inert gases, water, and light oils at temperatures ranging from 32°F to 180°F.
For contractors, the 120V AC solenoid coil is rated for Class F insulation and housed in an encapsulated NEMA 4/4X waterproof conduit, ensuring reliable operation in demanding environments. This 1.5-inch NPT valve provides positive shutoff via a spring-loaded plunger and supports a maximum operating pressure differential of 100 PSI for air and neutral gases. Whether you are managing car wash systems, water quality controls, or pneumatic HVAC lines, this brass solenoid valve offers the durability and precision required for professional installations.
Key Benefits- High Flow Capacity: Features a massive 1-1/4" orifice and high Cv factor to handle high-volume media transfer without significant pressure drops.
- Durable Construction: The brass body and Nitrile seal offer superior resistance to wear and chemical degradation in standard fluid and gas applications.
- Versatile Mounting: Designed as a multi-poise component, it can be mounted in various orientations, though vertical/upright is recommended for optimal plunger life.
- Environmental Protection: The NEMA 4/4X rated housing protects internal electrical components from moisture and dust, extending service life in mechanical rooms.
What media is the Nitrile seal compatible with?
The Nitrile seal is best suited for air, inert gases, water, and light oils. For steam or aggressive chemicals, a Class H coil and alternative seal materials like Viton or EPDM may be required.
Can this valve operate at zero pressure?
Yes, the S20 series is a zero differential piloted diaphragm valve, meaning it can open and close reliably even with very low or no pressure across the ports.
What is the maximum fluid temperature for this model?
When equipped with Nitrile seals, the maximum fluid temperature is 180°F, provided the ambient temperature stays within the 32°F to 125°F range.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
