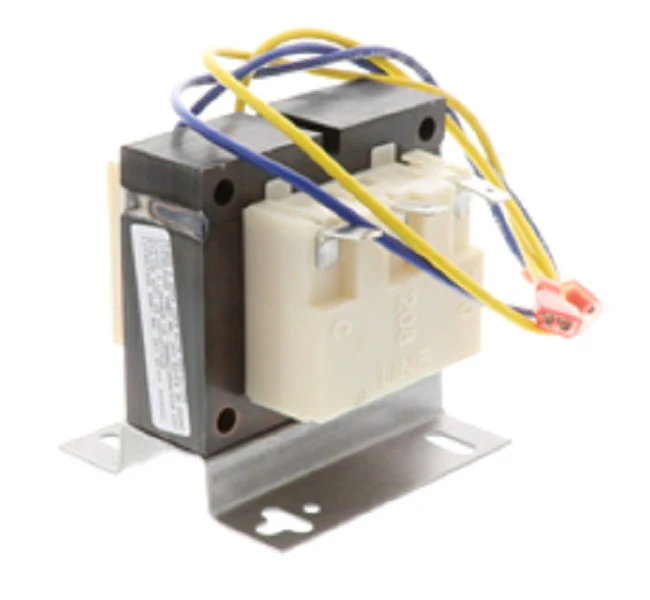

G.E. APPLIANCES 46W11 Transformer
The G.E. APPLIANCES 46W11 Transformer is a critical HVAC step-down transformer designed for technicians requiring a reliable 208/230V to 24V power conversion. Also recognized by the Lennox 101192-01 part number, this 70VA Class 2 transformer handles higher current loads than standard 40VA models, making it an essential component for control circuits in furnaces, air handlers, and commercial condensers. As a Class 2 power supply, it integrates seamlessly into existing low-voltage wiring environments where stable secondary voltage is non-negotiable for thermostat and relay functionality. The 46W11 transformer features a robust foot mount design and incorporates both leads and quick-connect terminals to ensure a fast, secure fit in tight service panels. Whether you are performing a Lennox 46W11 replacement or upgrading a control circuit, this 24V HVAC transformer provides the build quality needed to withstand the thermal cycling typical of commercial and residential heating and cooling applications.
Key Benefits for Technicians
- Increased Capacity: The 70VA rating provides a significant safety margin over lower-rated stock transformers, preventing nuisance tripping in complex control loops.
- Exact Lennox Cross-Reference: Direct physical and electrical replacement for Lennox 101192-01, eliminating the need for field modifications or bracket fabrication.
- Flexible Primary Input: Multi-tap capability handles 208V/240V primary voltage, ensuring compatibility with most residential and light commercial power configurations.
- Stable Control Voltage: Delivers a consistent 24VAC secondary voltage to protect sensitive electronic control boards and diagnostic components from voltage fluctuations.
- Efficient Installation: Features a standard foot mount with 2.3 lbs of proprietary core material for lower heat dissipation and high-quality leads for durable field connections.
Common Questions
Can I use the 46W11 to replace a 40VA transformer?
Yes, you can substitute a higher VA rated transformer like this 70VA model for a lower VA rated part, provided the primary and secondary voltages match. The higher VA rating allows the transformer to handle more load without overheating.
What are the primary mounting dimensions for this unit?
The unit measures approximately 3.13 inches in height, 3 inches in width, and 2.81 inches in depth. The foot mount footprint is designed to match standard HVAC transformer mounting patterns in Lennox and G.E. equipment.
Does this transformer include internal circuit protection?
This specific model is a non-protected transformer. It is recommended to use an external secondary-side fuse or circuit breaker to protect the 24V loop from shorts in the field wiring or contactors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
