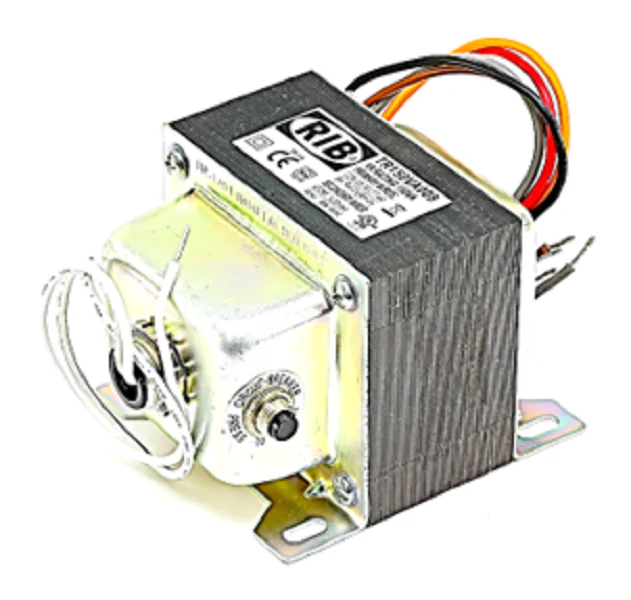

Functional Devices TR150VA008 Transformer
The Functional Devices TR150VA008 is a high-capacity 150VA control transformer engineered for industrial building automation and HVACR applications. This multi-tap unit provides maximum versatility for technicians, supporting primary voltages of 480Vac, 277Vac, 240Vac, and 208Vac while delivering a consistent 120Vac secondary output. Built with a rugged split-bobbin construction, it ensures reliable power for driving relays, powering sensors, and managing digital I/O circuits in demanding environments. The integrated circuit breaker over-current protection eliminates the need for external fusing, protecting your downstream controls from electrical faults and reducing specialized troubleshooting time. Installation is streamlined through a dual-threaded hub mount (1/2-inch NPT) and a heavy-duty foot mount, allowing for secure attachment to junction boxes or control panels. With 8-inch color-coded wire leads and an ambient temperature range of -30°F to 140°F, this 150VA step-down transformer is the go-to solution for reliable voltage reduction in complex commercial power distribution systems.
Key Benefits- Universal Primary Voltage: Supports 208/240/277/480V AC inputs, reducing the number of spare parts needed on your service truck.
- Enhanced Safety: Built-in manual reset circuit breaker provides immediate protection against secondary overloads.
- Flexible Mounting: Features both foot mount and dual 1/2" NPT threaded hubs for versatile enclosure integration.
- Commercial Grade Durability: UL Listed and rated for continuous operation in extreme temperatures from -30°F to 140°F.
- Simplified Wiring: Includes pre-stripped, color-coded leads for rapid termination in the field.
Can the TR150VA008 be used for 24Vac control circuits?
No, this specific model is designed for a 120Vac secondary output. Use the TR150VA008 when your control logic or peripheral devices require standard line voltage rather than low-voltage 24V power.
What happens if the internal circuit breaker trips?
The integrated breaker will interrupt the secondary circuit to prevent winding damage. Once the fault is cleared, the breaker can be manually reset to restore the 120Vac output.
Is this transformer suitable for outdoor NEMA enclosures?
Yes, its wide operating temperature profile makes it ideal for rooftop units and outdoor control panels, provided it is housed in a properly rated NEMA enclosure to protect it from direct moisture.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
