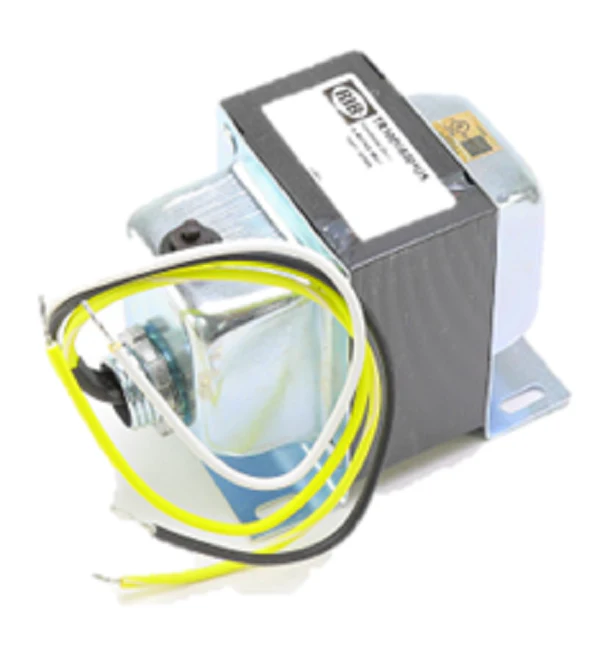

Functional Devices TR100VA001US Transformer
The Functional Devices TR100VA001US Transformer is a reliable, veteran-grade solution for pros requiring a high-capacity 96VA power rating for HVACR and building automation controls. This American-made step-down transformer effectively converts a 120Vac primary voltage to a stable 24Vac secondary voltage, making it ideal for powering large banks of relays, sensors, and digital I/O circuits. Designed with a split-bobbin construction to provide superior isolation, it also features integrated circuit breaker over current protection, eliminating the need for external secondary fusing and allowing for quick resets in the field. Mounting is flexible with options for both foot and single threaded hub mount, ensuring compatibility with standard electrical knockouts or flat-surface installations.
Key Benefits- 96VA high-output capacity allows for driving more 24V loads without the voltage drop associated with smaller units.
- Integrated manual reset circuit breaker protects the secondary winding and simplifies troubleshooting for the technician.
- Versatile NPT threaded hub mount and foot mount configurations provide secure attachment to 4x4 boxes or control panels.
- Class 2 UL Listed rating ensures compliance with safety standards for low-voltage power distribution.
- Robust split-bobbin design minimizes the risk of primary-to-secondary electrical shorts.
- Is the circuit breaker on the primary or secondary side? The integrated breaker is designed to protect the 24V secondary circuit from over-current and short-circuit conditions.
- Can this be used for outdoor HVAC units? While internal components are robust, this transformer should be installed within a NEMA-rated enclosure to protect against environmental elements.
- What is the benefit of the threaded hub? The single threaded hub allows you to mount the transformer directly through a standard 1/2-inch knockout, keeping wiring and connections neatly inside the box.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
