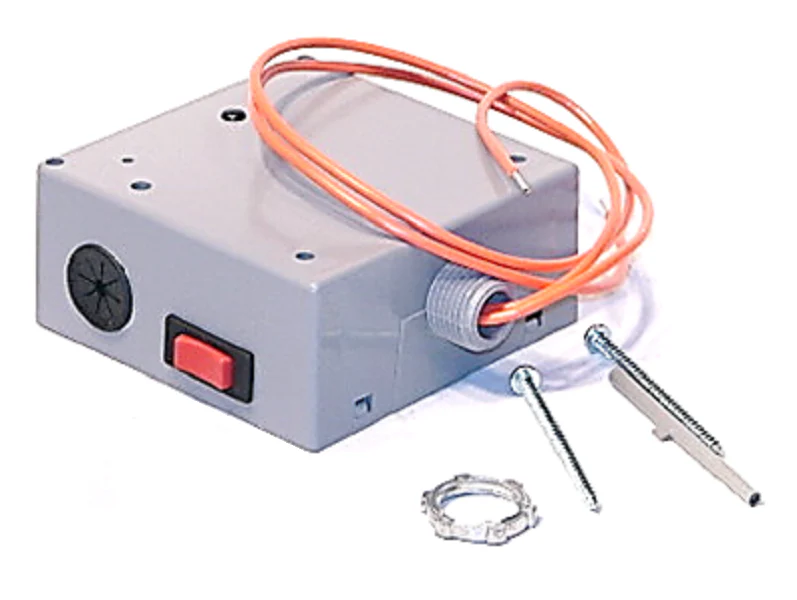

Functional Devices RIBXLSA Relay
The Functional Devices RIBXLSA is a heavy-duty enclosed relay and current sensor combination designed for streamlined building automation and motor control applications. This unit integrates a 10 Amp SPST relay with an internal adjustable AC sensor, eliminating the need for an external current ring and reducing panel clutter. Engineered for versatility, the 10-30Vac/dc coil accepts a wide range of control voltages, making it compatible with most HVAC/R controllers. The built-in override switch (Hand-Off-Auto) allows technicians to manually control the load during system testing or emergency bypass. Housed in a plenum-rated NEMA 1 enclosure with a 1/2" NPT nipple, the RIBXLSA provides secure high and low-voltage separation. With a trip point adjustable from 0.5 to 10 Amps and clear LED indicators for relay activation and current sensing, this RIB series device ensures precise load monitoring and reliable switching in demanding commercial environments.
Key Benefits- Streamlined Installation: Self-contained housing combines a control relay and adjustable current switch, saving significant time on the job site.
- Multi-Voltage Compatibility: Operates on any 10-30Vac/dc supply, providing flexibility for diverse control circuit requirements.
- Manual Override: Features an integrated 3-position switch (On/Auto/Off) for immediate manual control without needing to access the software.
- Durable Construction: Rated for a 10-million cycle life and designed to operate in temperatures from -30° to 140° F.
- Safety Verified: UL916 Energy Management and UL864 Fire listed for use in critical life safety and building integration systems.
How do I adjust the current sensing trip point?
The RIBXLSA features a potentiometer on the internal board. Turn it clockwise to increase the threshold or counter-clockwise to decrease it, observing the LED indicator to confirm the trip point meets your motor's specific current draw.
Can I use this for high-voltage and low-voltage separation?
Yes, the plenum-rated enclosure is specifically designed to provide physical separation between control-side wiring and the high-voltage load side, complying with electrical code requirements.
Is an external current transformer (CT) required?
No, this unit utilizes an internal current sensor. Simply pass the load wire through the internal opening to monitor current, reducing the cost and complexity of the install.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
