Functional Devices RIBXLCF Relay

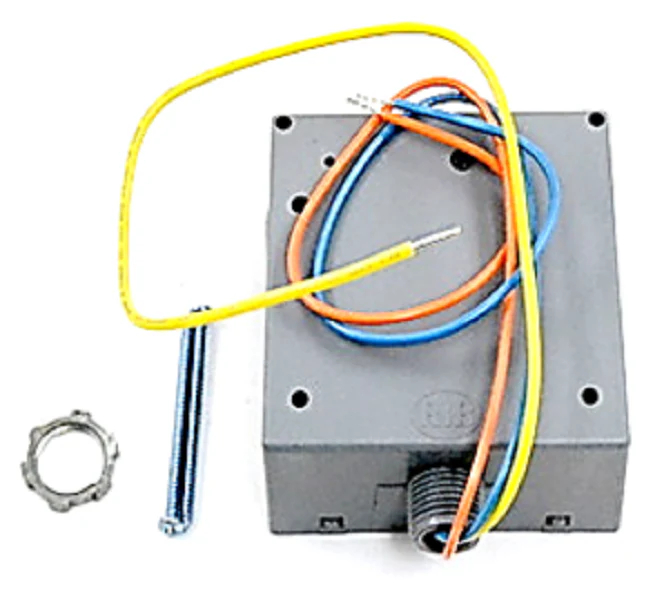

Step up your motor control and status monitoring with the Functional Devices RIBXLCF relay, a heavy-duty enclosed relay and current switch combination designed for seamless integration into building automation systems. This 10 Amp SPDT relay features a 10-30VAC/DC coil voltage, providing high-performance switching for HVACR applications without the need for additional enclosures. The RIBXLCF is engineered with a fixed current sensor that detects loads between 0.5 and 10 Amps, simplifying troubleshooting by confirming motor operation via the onboard LED status indicators. Housed in a plenum-rated NEMA 1 enclosure, this unit ensures high and low voltage separation for maximum safety and code compliance. Whether you are controlling exhaust fans, pumps, or unit heaters, the Functional Devices RIBXLCF offers a reliable, pre-wired solution that saves significant time on the job site. Its 600V rated wire leads and UL916 Energy Management listing make it the go-to choice for contractors prioritizing durability and precision in commercial environments.
Key Benefits- Dual Functionality: Combines a 10A control relay with an internal fixed AC sensor to sense motor status and control power in a single device.
- Versatile Coil Input: Compatible with 10-30VAC/DC control circuits, making it ideal for various BAS and HVAC controllers.
- Plenum Rated: Features a self-contained NEMA 1 housing suitable for installation in ceiling spaces and air handling environments.
- Visual Diagnostics: Includes a red LED indicator to provide immediate visual confirmation of relay activation and current trip status.
- Simplified Installation: Comes pre-wired with 16-inch leads and a 1/2" NPT nipple for quick mounting to standard electrical knockouts.
What is the sensing threshold for the internal current switch?
The RIBXLCF utilizes a fixed trip point set at 0.5 Amps, meaning it will sense and communicate status as soon as the load exceeds this minimum threshold up to 10 Amps.
Can I use this relay to control a motor directly?
Yes, the SPDT contacts are rated for 10 Amps, making it suitable for pilot duty or direct control of smaller fractional horsepower motors, provided they do not exceed the rated amperage.
Does this unit require a separate power supply for the sensor?
No, the current-sensing status switch is self-powered from the induced current of the monitored line, while the relay coil operates on the 10-30V control signal.
