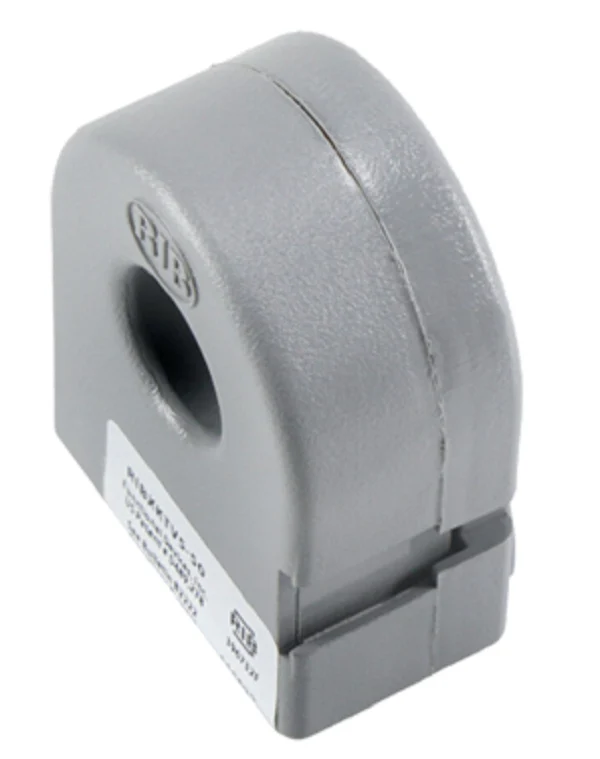

Functional Devices RIBXKTV5-50 Transducer
The Functional Devices RIBXKTV5-50 is a precision-engineered solid core current transducer designed for high-accuracy AC current monitoring in commercial and industrial HVACR applications. This 0-50 Amp current sensor converts sensed AC amperage into a proportional 0-5VDC analog output, making it an essential component for BAS integration and VFD performance tracking. Unlike split-core alternatives, the solid-core design of the RIBXKTV5-50 ensures superior long-term stability and eliminates the risk of core-mismatch errors. Its encasement is rated for demanding environments, providing the durability needed for mechanical room installations. Whether you are monitoring fan motor loads, pump cycles, or resistive heating elements, this 0-5VDC current transducer provides the linear signal response required for precise energy management and load analysis. Field technicians prefer this model for its reliable induced-power operation and straightforward wiring, ensuring seamless compatibility with standard analog input modules on programmable logic controllers and building automation systems.
Technical Key Benefits:
- High Precision Monitoring: Accurate 0-50A AC sensing range optimized for motor load profiling.
- BAS Compatibility: Standard 0-5VDC analog output integrates easily with most building automation controllers.
- Solid-Core Reliability: Fixed core construction prevents vibration-induced signal drift and mechanical failure.
- Self-Powered Design: Operational power is induced directly from the monitored conductor, simplifying field wiring.
- Compact Footprint: Enclosed housing allows for easy mounting within crowded electrical enclosures and motor starter panels.
Common Technical Questions:
What is the maximum voltage rating for the monitored conductor?
The internal sensing window is typically rated for 600VAC insulated conductors, but always ensure the conductor insulation meets the specific voltage requirements of your installation environment.
Can the 0-5VDC signal be sent over long distances?
While 0-5V signals are reliable, potential voltage drops over thin-gauge wire can affect accuracy. For runs exceeding 50 feet, ensure you are using shielded twisted pair and account for circuit resistance.
Does this unit require a separate power supply?
No, the RIBXKTV5-50 is induced-powered from the wire passing through the center of the transducer, reducing the labor required for external power wiring.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
