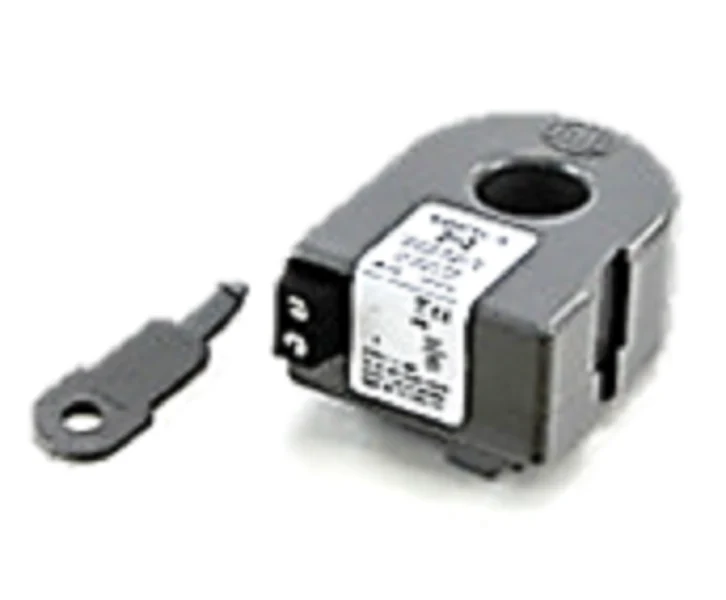

Functional Devices RIBXKTV5-10 Transducer
Technical professionals rely on the Functional Devices RIBXKTV5-10 for precise current monitoring in demanding automation and HVAC tasks. This solid-core analog current transducer is engineered to convert a sensed 0-10 Amp AC current into a proportional 0-5 Vdc output, making it a critical component for BMS integration and motor status verification. With a max sense voltage of 600 Vac and high-accuracy performance (96.8% full scale), it ensures dependable data without the need for external power. The unit features a pre-drilled mounting tab and a unique ratcheting wire clamp that secures the 0.5-inch window directly to the conductor, preventing shifts that affect calibration. Designed for industrial environments, it operates effectively from -30 to 140° F. Its terminal strip connection accepts 14-22 AWG wire, streamlining field wiring for contractors. Whether you are tracking blower motor performance or verifying load status, the enclosed current sensor design provides a compact, NEMA 1 rated solution for high-density control panels.
- Direct Integration: Provides a linear 0-5 Vdc signal compatible with most analog input controllers.
- Self-Powered Design: Operational power is induced directly from the monitored line, simplifying installation.
- Secure Installation: Integrated ratcheting cam clamp ensures the transducer remains fixed to the wire.
- Rugged Build: UL Listed and CE approved with a wide operating temperature range for mechanical rooms.
Common Questions:
Can the RIBXKTV5-10 be used on 480V circuits?
Yes, the unit is rated for a maximum sense voltage of 600 Vac, making it suitable for standard commercial and industrial motor voltages.
Does this transducer require a separate power supply?
No, this is a self-powered transducer. It derives the power needed for its circuitry directly from the current being sensed in the conductor.
What is the best way to mount this in a crowded panel?
Technicians often use the removable mounting tab for flat-surface attachment or rely on the ratcheting wire clamp to secure it directly to the cable, saving rail space.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
