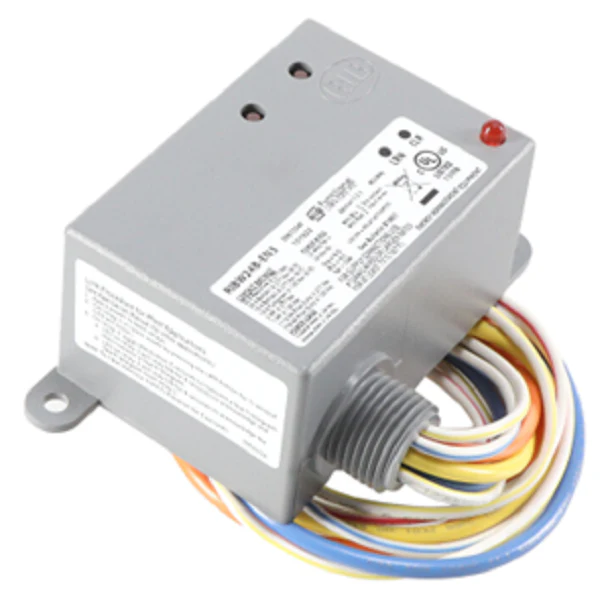

Functional Devices RIBW24B-EN3 Relay
The Functional Devices RIBW24B-EN3 is a high-performance EnOcean 902 MHz wireless relay engineered for demanding commercial HVACR and building automation environments. This 20 Amp SPDT enclosed relay operates on 24 VAC/DC power input and functions as both a wireless transceiver and a signal repeater, allowing for bi-directional communication in complex wireless networks. Designed in a NEMA 1 housing with a 1/2-inch NPT nipple, the RIBW24B-EN3 easily integrates into standard electrical boxes, providing a reliable relay in a box solution for building automation systems. With a dry contact input and a transmission range of 100 feet line-of-sight, it effectively eliminates the need for extensive hardwiring between controllers and loads. Note that when utilizing 24 Vdc, the device will not save the last state upon power loss. This 20-amp relay is UL listed and rated for continuous duty, making it an essential component for energy management applications and wireless lighting control.
Key Benefits- Reduced Installation Costs: Eliminates long wire runs by using 902 MHz EnOcean wireless technology for remote load switching.
- Signal Reliability: Features a built-in wireless repeater mode that can rebroadcast signals up to two times to extend network range.
- High Load Capacity: Rated for 20 Amp resistive loads and 2 HP at 277 Vac, suitable for heavy-duty HVAC motors and lighting ballasts.
- Versatile Integration: Compatible with up to 30 different EnOcean transmitters, including occupancy sensors and self-powered switches.
- Compact Enclosure: The NEMA 1 housing is plenum-rated and includes a pre-wired 16-inch lead set for rapid field deployment.
How do I pair the relay with a wireless switch?
Apply power to the RIBW24B-EN3 and press the LRN button until the LED blinks. Then, actuate the transmitter (e.g., click a wireless switch three times) to link the devices. A solid LED light for four seconds confirms a successful link.
Can this relay be used to extend the range of other wireless devices?
Yes, by enabling Repeater Mode, the unit will echo signals from other 902 MHz EnOcean devices within its range, even if it is not specifically linked to respond to those devices.
Does the unit remember its state after a power failure?
While the relay typically supports "Last State" recovery, the RIBW24B-EN3 model specifically will not save or restore the last state if it is being powered by a 24 Vdc source.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
